Government Solutions

TAA Compliant

Product Overview

The TAA series is a self-developed ultra-high-definition product targeting the fine-pitch LED display market. It is mainly used in various control fields such as security monitoring, command dispatch, video conferencing, and broadcasting for high-quality display applications. Meets the Trade Agreement Act standards.

Available in Multiple Pixel Pitches Starting at 0.6mm

Efficient Heat Dissipation

High precision seamless splicing, silent and fanless design, die- cast aluminum body.

Low Power Consumption

Common cathode circuit design, achieving energy-saving and low power consumption, high refresh rate, HDR high dynamic image display, 16-bit high grayscale and low brightness.

High Protection

Special treatment with TOPCOB technology, enabling surface waterproof, anti-collision, and moisture-proof;

Dual Redundancy

Supports dual backup for power and signal;

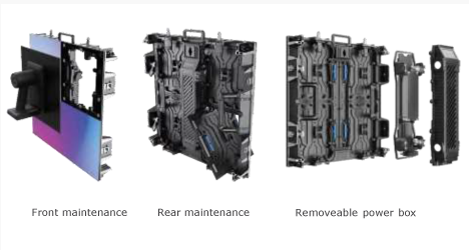

Easy Maintenance

Full front maintenance, featuring hot-swappable modules, and overall rigid connection.

Off-Board Power Supplies for additional security.

Rolling Gate

Multiple Pixel Pitches Available

P0.78/P0.9/P1.2/P1.5/P1.9/P2.6/P3.9

Meets Various Scenarios

GOB Technology

Machanical

Hiddden

Lift Control

Custom Size

IP65

Flexible Size Customization

Cutomizable size to fit various scenarios. High-resolution, realistic image quality, excellent color accuracy and visual experience

Gob Protection

Moisture-proof and anti-collision suitable for complex environments

One-Button Lift

Remote control, hidden instalation

Safe Power Supply

36V/24V DC input

Model P0.78 P1.25 P1.56 P1.95 P2.6 P3.91
LED SMD0606 SMD1010 SMD1010 SMD1010 SMD1415 SMD2020
Module Size (mm) 250*62.5 500*62.5 500*62.5 500*62.5 500*62.5 500*62.5
Module Resolution 320 x 80 400 x 50 320 x 40 256 x 32 192 x 24 128 x 16
Pixel Density (pixels/m2) 1643524 640000 409600 262144 147456 65536
Brightness (CD/m2) >500cd >600cd >600cd >600cd >800cd >800cd
Weight(Kg/m2) 16KGS 16KGS 16KGS 16KGS 16KGS 16KGS
Max Power 512w/rri 512w/rri 512w/rri 512w/rri 512w/rri 512w/rri
Average Power 170w/rri 170w/rri 170w/rri 170w/rri 170w/rri 170w/rri
Scan Method 1/80 1/50 1/40 1/32 1/24 1/16
Refresh Rate 3840HZ 3840HZ 3840HZ 3840HZ 3840HZ 3840HZ

American LED Wall is a trusted indoor LED display manufacturer serving businesses across the United States. The company supplies high-quality indoor LED displays for many different industries and applications. Their LED displays help businesses share information, promote products and services, and create a better experience for customers and visitors. These displays are commonly used in offices, retail stores, churches, schools, hotels, conference centers, and other indoor spaces where clear and attractive visual communication is important.

At American LED Wall, we work hard to provide LED displays that businesses can depend on. Our displays deliver clear pictures, bright colors, and reliable performance for everyday use. Whether you need a display for a small meeting room, a retail store, a church, or a large commercial space, our team can help you choose a solution that fits your needs and budget.

Custom Indoor LED Display Manufacturing Solutions

Every business has unique requirements, which is why we also have custom indoor LED video wall manufacturing solutions. Our team asks customers for their requirements to understand their goals, available space, and display requirements before recommending the best option.

We manufacture indoor LED screens in various sizes, resolutions, and pixel pitches to suit a range of applications. Our displays provide clear images, vibrant colors, and smooth performance. We also provide customized solutions that fit specific wall sizes and installation needs.

We do everything from consultation and design to manufacturing and installation. Our focus is on providing a smooth experience and delivering products that offer long-term value to our customers. Our goal is to help businesses invest in LED display solutions so that they can meet their needs today and continue performing well in the future.

Types of Indoor LED Displays We Manufacture

American LED Wall manufactures a variety of indoor LED displays for different industries and applications.

1. Fine Pitch LED Displays: Fine-pitch LED displays offer excellent image clarity. They are ideal for locations where viewers are close to the screen, such as conference rooms and boardrooms.

2. Corporate LED Video Walls: Corporate LED video walls are commonly used for presentations, meetings, and company communications. They help you to create a professional environment and improve audience engagement.

3. Retail LED Displays: Retail stores use LED displays to promote products, highlight special offers, and attract customer attention. These displays help businesses create a more engaging shopping experience.

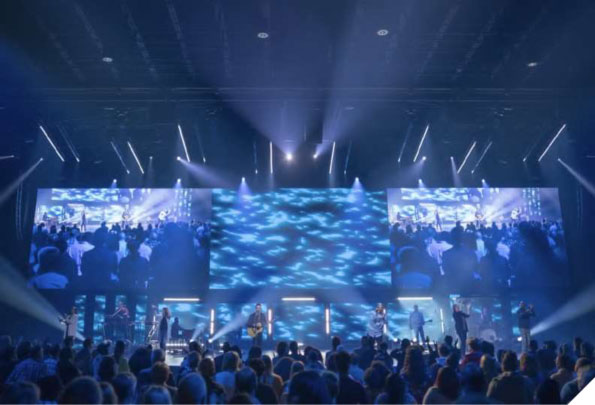

4. Church LED Displays: Churches use indoor LED displays to show lyrics, announcements, videos, and live broadcasts. These displays improve visibility and help audiences stay connected during services.

5. Control Room LED Displays: Control room LED displays provide clear, reliable visuals for monitoring critical information. They are designed to support continuous operation and dependable performance.

6. Educational and Hospitality Displays: Schools, universities, hotels, and event venues use indoor LED displays to share information, improve communication, and enhance visitor experiences.

Why Choose American LED Wall as Your Indoor LED Display Manufacturer?

Choosing the right indoor LED display manufacturer is important for the success of any project. American LED Wall is committed to delivering quality products and dependable customer service.

Our team has experience in designing and manufacturing LED display solutions for a wide range of industries. We understand that every project is different, which is why we provide customized recommendations based on your specific goals and requirements.

We use quality components and advanced manufacturing processes to ensure reliable performance and long service life. Our displays are designed to provide excellent image quality while maintaining energy efficiency and durability.

In addition to manufacturing, we offer support throughout the entire process. From planning and design to installation and technical assistance, our team is available to help at every stage of the project.

Businesses choose American LED Wall because we focus on quality, customer satisfaction, and long-term value. Our goal is to provide indoor LED displays that help organizations communicate more effectively and create a stronger visual impact.

Introducing the AMD Conference Series

Discover the future of visual excellence with American LED Wall Company’s Indoor LED Video Wall Displays. Transform any indoor space into a captivating environment with stunning visuals and seamless installation. Elevate your communication through vibrant displays that leave a lasting impression.

  • Turn-key systems, including mounting hardware, trim kit, processor and spare parts

  • Available in pre-configured sizes, 108''/110''/135''/162''/165''

  • IR TOUCH Functionality available for 108'' and 135''

  • Available in 4k Resolution

  • Available in 21:9 for MS Teams

  • Optional Rolling Stand

  • Multiple LED technologies SMD/COB/HOB/Mini 4 in 1

  • Complete Front Maintenance

  • Perfect solution for corporate conference rooms and board room applications

  • Remote DC-DC power option available

More Info

Full Flip Chip on Board LED Technology (COB)

Advantages of Chip on Board Technology

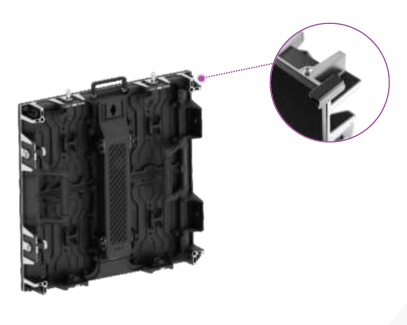

Easy installation

All products have fast locks, neat and light-weight cabinets design, much labor and cost saving in installation

Installation environment adaptability

Up to 28lbs anti-collision and waterproof led surface, suitable for various installation environments

Display effect

Years optimizing and upgrading with impressively stunning visual effect, which is even better than SMD

Interaction, Smooth Touch

Available with epoxy resin rather than masks for smooth touch makes our COB a good option for VR & AR and various interactive projects

Reliability

No more than 10PPM led failure rate, 5-10 times lower than SMD, which is 50-100PPM. Higher reliability guarantees a longer life span, less maintenance and labor-costs

Easy cleaning

IP43 front waterproof, easily get cleaned with a wet cloth. Waterproof delivers higher protection, therefore higher stability, and more possibilities for installation in high traffic areas

More pixel option

Encapsulated in chip units, our COB displays are available for smaller pixels options. (0.4mm - 1.2mm pixel pitch). With more pixels sharing universal panel frame and components, our COB products have higher versatility and flexibility for various installations

Energy & electricity saving

Our COB displays, with common cathode design, have 30%-50% less power consumption

AMD-MAX Series

  • Replaces your tired LCD display

  • Full Front Service

  • Supports VESA Wall Mounting

  • Lightweight and Ultra Thin

  • Die Cast Aluminum Cabinet

  • Seamless Installation

  • Available 0.9mm-2.5mm Pixel Pitch

More Info

AMD-TI-135 (135") Touch Interactive

  • All-in-One with 20 touchable points

  • Allows writing, circling, and annotating on the whiteboard

  • Multi-device and multi-system wireless screen mirroring for up to 4 devices casting screens at the same time. Support for Android & Windows systems. Easy infrared/Bluetooth wireless remote control

  • Available with either Wall Mount or Rolling Stand

  • Hi-Temp ON Board LED

  • Available 1.5mm Pixel Pitch

More Info

AMD-MC Series

  • 16:9 Ratio (600x337.5)

  • Full Front Service

  • Available SMD and Full Flip Chip COB

  • Wall Mount Installation

  • Thin and Lightweight

  • Die Cast Aluminum Cabinet

  • Seamless Installation

  • Available 0.9mm-2.5mm

More Info

AMD-V Series

  • Available from 0.9mm to 1.8mm

  • 16:9 Aspect Ratio

  • Wall Mount Full Front Service

  • Lightweight and Ultra-thin

  • Die Cast Aluminum Cabinet

  • Seamless Installation

  • Multiple LED Technologies-SMD, COB, HOB, Mini 4 in 1, Micro LED

More Info

AMD-FT Series

  • High Performance 1.9mm and 2.6mm Pixel Pitch

  • Front Service

  • Supports Ceiling, Wall and Floor Installation

  • Lightweight

  • Die Cast Aluminum Cabinet

  • Seamless Installation

  • Supports 90 Degree and Cube Installations

More Info

AMD-R Series

  • Available 2.6mm and 2.9mm

  • Front and Rear Service

  • Supports Hanging and Floor Stacking

  • Lightweight

  • Die Cast Aluminum Cabinet

  • Seamless Installation

  • Built in Curve Function, Concave and Convex

More Info

AMD-RD Series

  • Front and Rear Service

  • Supports Wall, Ceiling and Floor Installation

  • Lightweight

  • Die Cast Aluminum Cabinet

  • Seamless Installation

  • Available 2.6mm (500x500mm) and (500x1000mm)

More Info

Mini LED Advantages

Frequently Asked Questions

1. What does an indoor LED display manufacturer do?

An indoor LED display manufacturer designs, manufactures, and supplies LED display systems for indoor applications, including offices, retail stores, churches, schools, and event venues.

2. Can indoor LED displays be customized?

Yes. Indoor LED displays can be customized in size, resolution, pixel pitch, and installation style to meet specific project requirements.

3. What industries use indoor LED displays?

Indoor LED displays are used in corporate offices, retail stores, educational institutions, places of worship, hospitality venues, entertainment centers, and control rooms.

4. How long do indoor LED displays last?

A high-quality indoor LED display can provide many years of reliable performance when properly maintained and operated under recommended conditions.

5. Why choose American LED Wall?

American LED Wall provides custom indoor LED display solutions, quality manufacturing, professional support, and reliable products designed to meet the needs of businesses throughout the United States.

Viewing Distance Calculations for Directview LED Walls

Acceptable viewing distance is subjective; it’s whatever a viewer perceives to be acceptable. There are, however, basic calculations to determine acceptable viewing distance.

Choosing the perfect LED wall size doesn’t have to be complicated. Use our LED screen size estimator to visualize your setup by estimating height, width, and total display area. This ensures your screen design fits your space and meets your audience’s viewing expectations.

We are a Specialty Display Solutions provider of Directview LED displays and LCD Digital Signage display to the Dealer Channel. We offer solutions for both Indoor and Outdoor applications.
