Transparent LED Screen

NEXNOVO-NFL-Series-1
NEXNOVO-NFL-Series-2
NEXNOVO-NFL-Series-3
NEXNOVO-NFL-Series-4

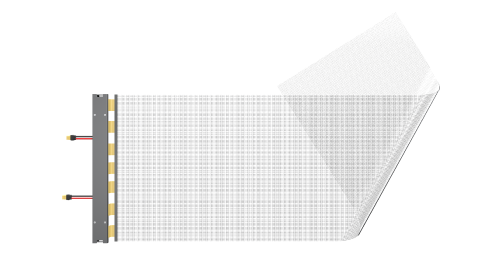

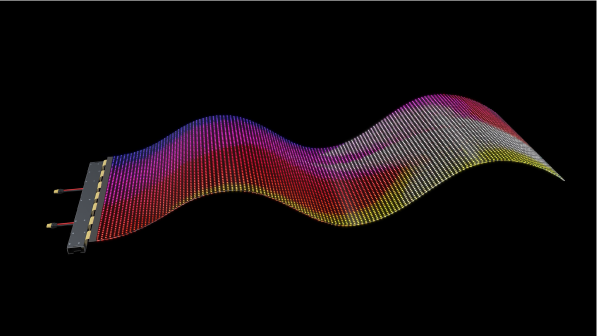

NFL Series

Ultra-Clear Adhesive Transparent LED Film



Just stick, it turns glass into eye-catcher

NEXNOVO’s new-generation ultra-clear adhesive LED film solution,
NexFilm (NFL Series), is developed with IC-integrated LEDs, highly
conductive nano-circuit technology, and ultra-transparent resin as
base material. With pixel pitch as fine as 3.9mm, the dark conductive
circuit and black-coated LEDs help reduce ambient light interference
while enhancing image contrast and color consistency.

Ultra transparency

Flexible film

Dot diminishable

Stick-on system

NFL LED Film Installation

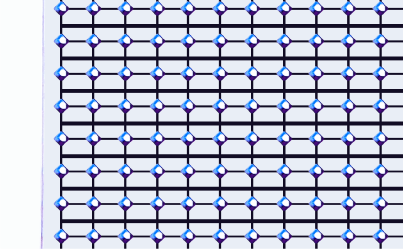

Film LED – Front View

Product Model NFL 3.9 NFL 4.6 NFL 5.9
LED NEX1515 NEX1515 NEX1515
Pixel distance(mm) 3.9*3.9 4.63*4.63 5.95*6
Cabinet size (mm) Length: 1000/1250/1500
Width：351.5/500		 Length: 1000/1250/1500
Width：352/500		 Length: 1000/1250/1500
Width：357/500
Module Resolution （px) Length: 256/320/384
Width: 90/128		 Length: 214/267/322
Width: 76/108		 Length: 165/206/248
Width: 60/84
Physical transparency ＞64% ＞70% ＞78%
Brightness (CD/㎡) 3000~3500 3000~3500 3000~3500
Max/Avg. Power W/㎡ 520/170 520/170 520/170
Control system Colorlight / Novastar
Refresh Rate ≥3840Hz
IP IP50
Gray Scale 16bit
Thickness 2mm
Weight 2.5Kg/㎡
Input Voltage 200-240VAC
NFL series Brochure
Order Now

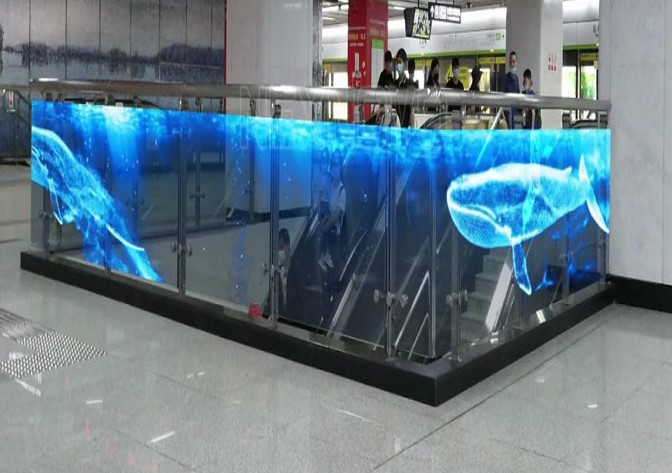

NB - NexBarrier

NB Glass LED Barrier

  • Patented IC-ingrated technoogy, Glass LED display
  • Transparent and Simple design, 92% transparency
  • Complete solution, Two-way drive and multiple quality guarantees
  • Applications: Airports, train stations, Metro stations, shopping malls, lounge, tourist site balustrades, stadiums, plazas, etc.
MODEL LED Pixel Pitch (W x H) (mm) Cabinet Size (W x H) (mm) Display Resolution Brightness (CD/m²) Transparency
NB6 NEX1515 5.95x6 1500X1200 1000X1200 168x176 (29568) 2500-3000 85%
NB8 NEX2222 8.33x8.33 1500X1200 1000X1200 120x120 (14400) 4000-4500 90%
NB10 NEX2222 10.42x9.8 1500X1200 1000X1200 96x102 (9792) 4000-4500 93%
NB16 NEX2222 15.63x15.1 1500X1200 1000X1200 64x66 (4224) 3500-4000 96%
Watch nt series in action
Order Now

NE- Glass LED Series

NE Glass LED

  • Building new technoogy
  • Customize size design, 92-98% transparency
  • Two-way drive and multiple quality guarantees
  • Applications: Landmark building, building facades, architectural lighting, retail windows, elevator facades, airports, train stations, art museum, etc.
MODEL LED Pixel Pitch (W x H) (mm) Cabinet Size (W x H) (mm) Display Resolution Brightness (CD/m²) Transparency
NE8 NEX2222 8.33x8.33 120x120 (14400) 2500-5000 90%
NB10 NEX2222 10.3x10.42 96x96 (9216) 4000-4500 93%
NB16 NEX2222 15.63 x 15.33 Customized, Max<8 square meter 64x64(4096) 3500-4000 96%
NB20 NEX2222 20.84x20.84 48x48 (2304) 2500-3000 98%
NB25 NEX2222 25x25 40x40 (1600) 1500-2000 98%
Watch nt series in action
Order Now

Discover In-Glass LED

Normal LED installations require a wall structure to mount to. By using In-Glass LED it now becomes the wall, by transforming an ordinary Glass wall into a dynamic marketing tool.

  • High brightness and sharp display quality, your content captures attention—even in busy environments and bright daylight
  • Up to 93% transparency, In-Glass LED maintains natural light and preserves the spaciousness of any environment
  • Seamlessly integrates into any setting—from flagship stores to showrooms and events
  • Bold colors, movement, and dynamic visuals ensure your message captures attention and keeps audiences engaged
  • In-Glass LED combines LED lighting with glass panels, so you never have to choose between functionality and design
  • Transform ordinary surfaces like walls, ceilings, and displays into extraordinary experiences

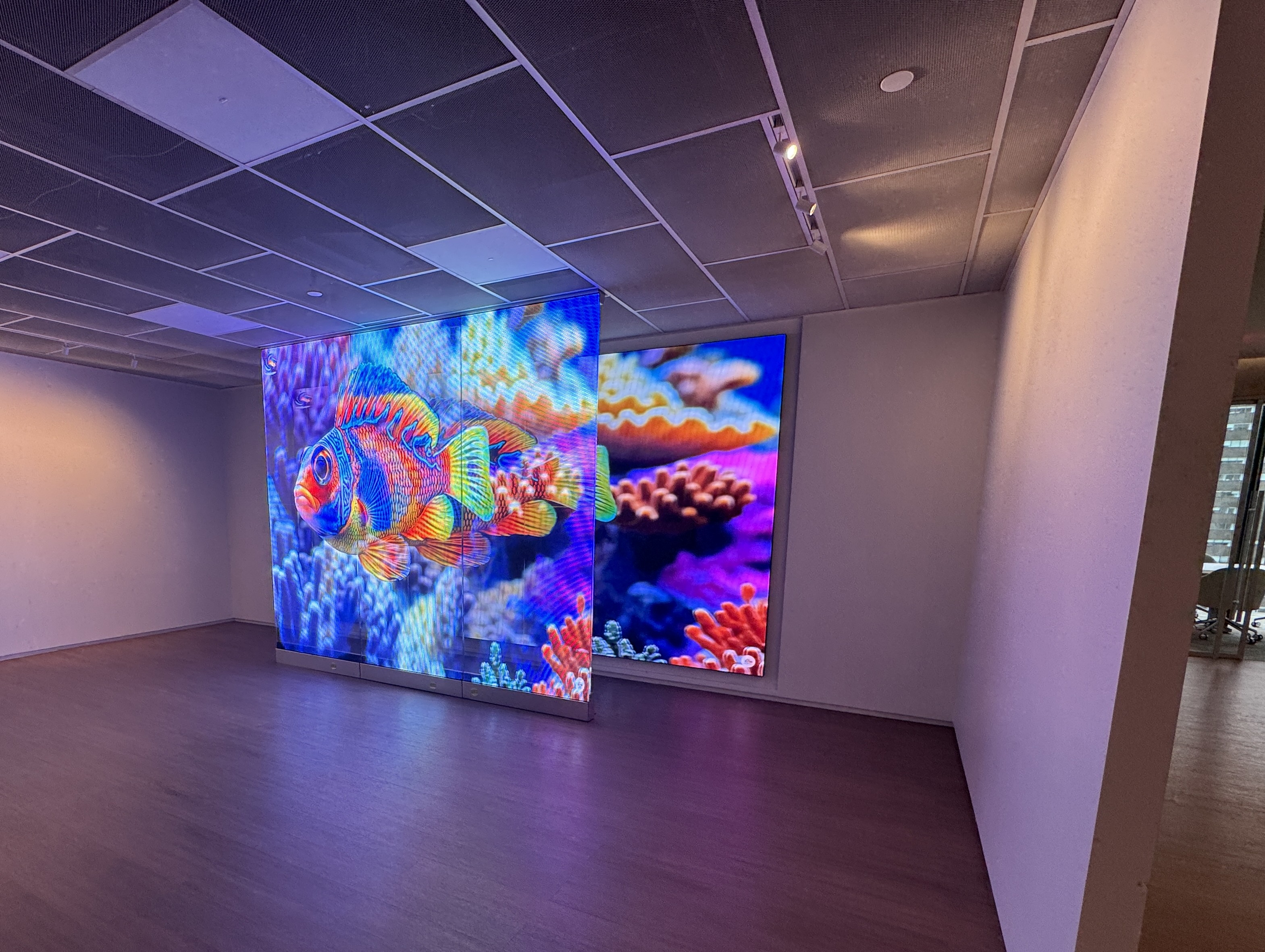

Nexnovo NSN Series

Nexnovo In-Glass LED uses high density industrial tempered glass as base material combined with patented integrated-IC technology. This product is widely used for retail glass windows and atriums in modern architectures. NSN series has very high transparency, giving way to maximum impact on any creative content.

MODEL THICKNESS (mm) PIXEL PITCH (W x H) (mm) CABINET SIZE (W x H)(mm) BRIGHTNESS (CD/m²) TRANSPARENCY
NSN3.9 18.04 4.63x4.63 1000X2000 1000X2250 1000X2500 1000X2750 2500-3000 >85%
NSN4 18.04 4.63 x 4.63 1000X2000 1000X2250 1000X2500 1000X2750 1000X3000 2500-3000 >85%
NSN4.63 18.04 4.63 x 4.63 1000 x 2000 / 1000 x 2250 / 1000 x 2500 / 1000 x 2750 / 1000 x 3000 / 1188 x 2000 / 1188 x 2250 / 1188 x 2500 / 1188 x 2750 2500-3000 72%
NSN6 18.04 5.95 x 6 1000 x 2000 / 1000 x 2250 / 1000 x 2500 / 1000 x 2750 / 1000 x 3000 / 1188 x 2000 / 1188 x 2250 / 1188 x 2500 / 1188 x 2750 2500-3000 85%
NSN8 18.04 8.33 x 8.33 1000 x 2000 / 1000 x 2250 / 1000 x 2500 / 1000 x 2750 / 1000 x 3000 / 1188 x 2000 / 1188 x 2250 / 1188 x 2500 / 1188 x 2750 4500-5000 90%
NSNIO 18.04 10.42 x 10.42 1000 x 2000 / 1000 x 2250 / 1000 x 2500 / 1000 x 2750 / 1000 x 3000 / 1188 x 2000 / 1188 x 2250 / 1188 x 2500 / 1188 x 2750 4000-4500 93%
Watch nsn series in action
MORE INFO

Nexnovo NexEsign (NT) Series

The NT NexEsign is an ultra-transparent glass LED display using NEXNOVO’s patented integrated-IC technology and nano film circuits. This display has an all-in-one cloud base content creation & management application, allowing a complete central administration. It is the new generation of smart high-tech displays that brings innovation to any and most markets requiring efficient and avant-garde signage. NT NexEsign is versatile, use it for simple way finders, critical information displays or just amazing advertisers. In environment such as; airports, train stations, retail stores, healthcare, education system, corporate offices, food and beverage industry, tourist sites and much more.

See Specifications

MODEL THICKNESS (mm) PIXEL PITCH (W x H) (mm) CABINET SIZE (W x H)(mm) BRIGHTNESS (CD/m²) TRANSPARENCY
NT10-A 8mm 10.52 x 10.42 800 x 566 4000-4500 92%
NT8 8mm 8.3 x 7.8 800 x 566 4000-4500 90%
Watch nt series in action
Order Now

Nexnovo NJ Series

Adjusting for the size of your windows, simply select the right modules from different available dimensions then attach them into a  single screen, keeping a high resolution image without affecting the transparency is key.

nexnovo-assembly
nj-2

See Specifications

MODEL PIXEL PITCH (W x H)(mm) CABINET SIZE (W x H)(mm) BRIGHTNESS (CD/m²) TRANSPARENCY
NJ2.6 2.61 x 5.68 mm 813/1000
1156 x 500 mm		 4500-5800 72%
NJ3.38 3.38 x 6.94 mm 813/1000
1156 x 500 mm		 4500-5800 77%
NJ3.9 3.91 x 7.82 mm 813/1000
1156 x 500 mm		 4500-5800 80%
Watch nj series in action
MORE INFO
xrl2

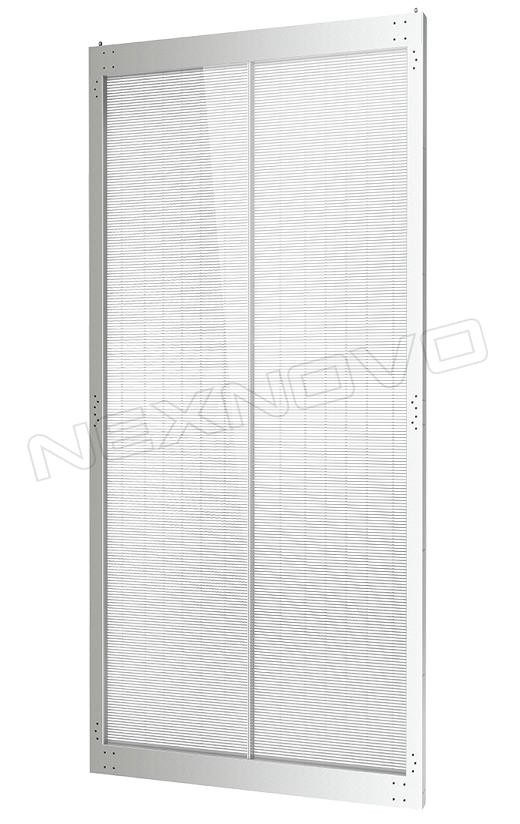

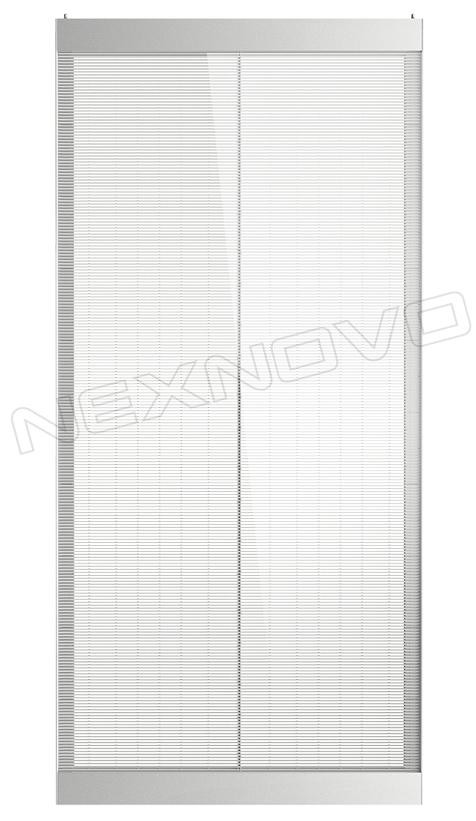

Nexnovo XRL Series

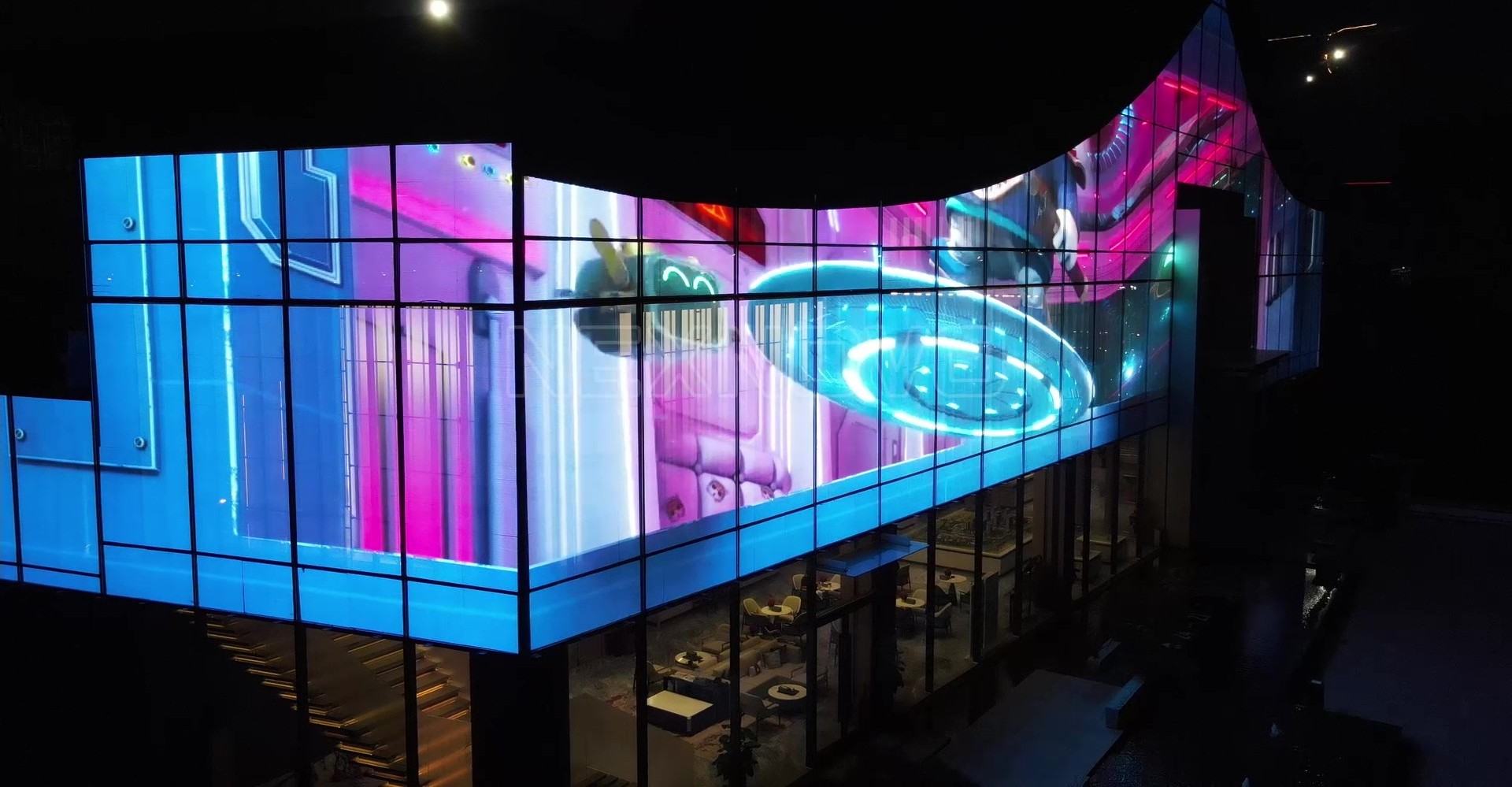

NEXNOVO LED transparent screen (XRL series) is a cost-effective standard customized product designed for glass curtain wall. High resolution, high brightness, and easy installation.

Applications: Glass curtain walls of commercial buildings, landmark buildings, office buildings, venues, etc.

See Specifications

MODEL PIXEL PITCH (W x H)(mm) CABINET SIZE (W x H)(mm) BRIGHTNESS (CD/m²) TRANSPARENCY
XRL3.9 3.91 x 7.82 1000 X 1000 5000-6000 76%
XRL8 7.82 x 7.82 1000 X 1000 5000-6000 76%
XRL10 10.42 x 10.42 1000 X 1000 5000-6000 82%
XRL16 15.63 x 15.63 1000 X 1000 3000-3500 88%
Watch XRL series in action
MORE INFO

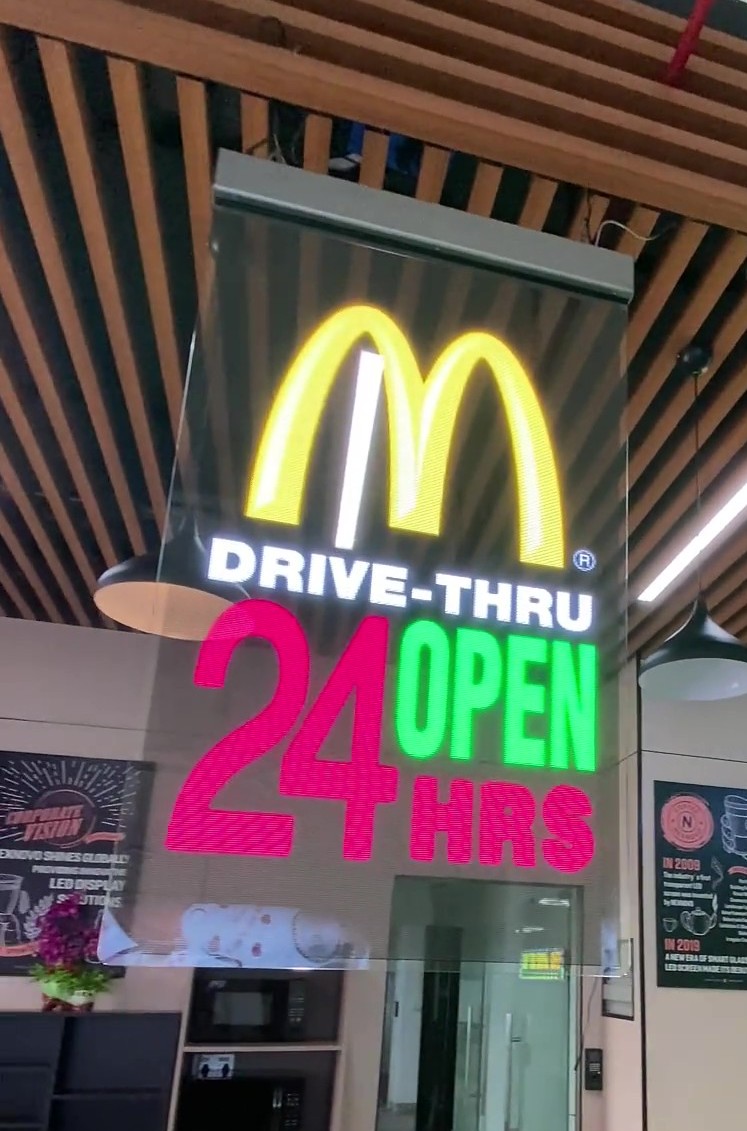

NexPoster In-Glass (NPG) Series

NPG (NexPoster In-Glass) is a groundbreaking technology for retail showcase advertising. Smart, densely distributed LED pixels are embedded in tempered glass, ensuring high safety, ultra resolution and brightness, and unmatched transparency. NPG offers a 16:9 image ratio, quick setup, and collective cloud content management, making it the ideal advertising solution, particularly for retail chain stores.

See Specifications

MODEL PIXEL PITCH (W x H)(mm) CABINET SIZE (W x H)(mm) BRIGHTNESS (CD/m²) TRANSPARENCY
NPG3.4 3.4 x 3.4 1475 X 823 4000-4500 60%
Watch npg series in action
Order Now

Key Features of LED Transparent Screen Technology

  • High Transparency

    One of the best advantages of this transparent LED display is that it does not interfere with natural lighting and interior visibility, which makes it an excellent choice for glass-based architecture.

  • Ultra-lightweight and Slim Design

    Advanced material and modular assembly make flexible transparent LED screens lightweight and easy to install. You can install or mount these screens on existing glass structures without heavy framing.

  • High Brightness and Clarity

    Although these screens are transparent, these screens deliver exceptional brightness and vibrant visuals, which ensure that you can see content on this screen visible in daylight.

  • Energy-Efficient

    Due to their minimalist pixel design and spacing, transparent LED displays consume less power than traditional LED screens.

  • Easy Installation and Maintenance

    Most transparent LED screen displays are designed with modular panels that simplify the installation and make future maintenance hassle-free.

Applications of Transparent LED Screen Display

The applications of LED transparent screen technology are virtually limitless. Here are some of the top use cases:

  • Retail Stores & Showrooms

    Display products, promotions, and seasonal messages without obstructing window visibility.

  • Corporate Buildings

    Communicate corporate branding or welcome messages on building facades.

  • Airports & Transit Hubs

    Share travel updates and advertisements in a sleek and modern format.

  • Museums & Exhibitions

    Blend digital storytelling with real-life displays.

  • Event Staging & Production

    Use as part of stage backgrounds or booth setups to deliver visual impact without blocking the stage view.

Transparent LED technology is not just a trend but the future of commercial display. You can grow your business with their combination of sleek design, clarity, and functionality. You can also transform ordinary spaces into dynamic digital environments with these screens.
Whether you want to enhance your storefront, create a digital experience in your corporate space, or wow visitors at an event, a transparent LED screen is a smart, future-ready investment.

Get Started Today

Ready to embrace the future of transparent display technology?
Contact us now for expert guidance, customized solutions, and top-quality transparent LED display screens tailored to your business needs.
