Indoor LED Video Wall

Government Solutions

TAA Compliant

Product Overview

The TAA series is a self-developed ultra-high-definition product targeting the fine-pitch LED display market. It is mainly used in various control fields such as security monitoring, command dispatch, video conferencing, and broadcasting for high-quality display applications. Meets the Trade Agreement Act standards.

Available in multiple pixel pitches starting at 0.6mm

Efficient Heat Dissipation

High precision seamless splicing, silent and fanless design, die- cast aluminum body.

Low Power Consumption

Common cathode circuit design, achieving energy-saving and low power consumption, high refresh rate, HDR high dynamic image display, 16-bit high grayscale and low brightness.

High Protection

Special treatment with TOPCOB technology, enabling surface waterproof, anti-collision, and moisture-proof;

Dual Redundancy

Supports dual backup for power and signal;

Easy Maintenance

Full front maintenance, featuring hot-swappable modules, and overall rigid connection.

Off-Board Power Supplies for additional security.

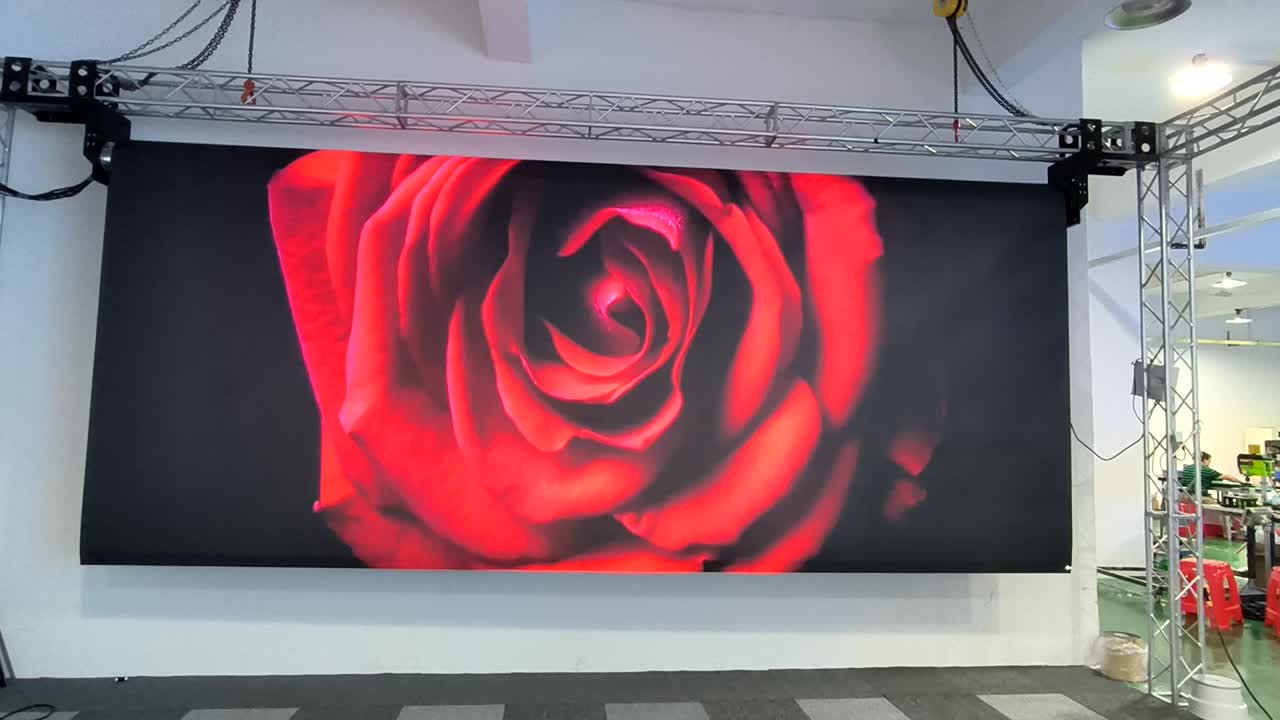

Rolling Gate

Multiple Pixel Pitches Available

P0.78/P0.9/P1.2/P1.5/P1.9/P2.6/P3.9

Meets Various Scenarios

GOB Technology

Machanical

Hiddden

Lift Control

Custom Size

IP65

Flexible Size Customization

Cutomizable size to fit various scenarios. High-resolution, realistic image quality, excellent color accuracy and visual experience

Gob Protection

Moisture-proof and anti-collision suitable for complex environments

One-Button Lift

Remote control, hidden instalation

Safe Power Supply

36V/24V DC input

Model P0.78 P1.25 P1.56 P1.95 P2.6 P3.91
LED SMD0606 SMD1010 SMD1010 SMD1010 SMD1415 SMD2020
Module Size (mm) 250*62.5 500*62.5 500*62.5 500*62.5 500*62.5 500*62.5
Module Resolution 320 x 80 400 x 50 320 x 40 256 x 32 192 x 24 128 x 16
Pixel Density (pixels/m2) 1643524 640000 409600 262144 147456 65536
Brightness (CD/m2) >500cd >600cd >600cd >600cd >800cd >800cd
Weight(Kg/m2) 16KGS 16KGS 16KGS 16KGS 16KGS 16KGS
Max Power 512w/rri 512w/rri 512w/rri 512w/rri 512w/rri 512w/rri
Average Power 170w/rri 170w/rri 170w/rri 170w/rri 170w/rri 170w/rri
Scan Method 1/80 1/50 1/40 1/32 1/24 1/16
Refresh Rate 3840HZ 3840HZ 3840HZ 3840HZ 3840HZ 3840HZ

Introducing the AMD Conference Series

Discover the future of visual excellence with American LED Wall Company’s Indoor LED Video Wall Displays. Transform any indoor space into a captivating environment with stunning visuals and seamless installation. Elevate your communication through vibrant displays that leave a lasting impression.

  • Turn-key systems, including mounting hardware, trim kit, processor and spare parts

  • Available in pre-configured sizes, 108''/110''/135''/162''/165''

  • IR TOUCH Functionality available for 108'' and 135''

  • Available in 4k Resolution

  • Available in 21:9 for MS Teams

  • Optional Rolling Stand

  • Multiple LED technologies SMD/COB/HOB/Mini 4 in 1

  • Complete Front Maintenance

  • Perfect solution for corporate conference rooms and board room applications

  • Remote DC-DC power option available

More Info

Full Flip Chip on Board LED Technology (COB)

Advantages of Chip on Board Technology

Easy installation

All products have fast locks, neat and light-weight cabinets design, much labor and cost saving in installation

Installation environment adaptability

Up to 28lbs anti-collision and waterproof led surface, suitable for various installation environments

Display effect

Years optimizing and upgrading with impressively stunning visual effect, which is even better than SMD

Interaction, Smooth Touch

Available with epoxy resin rather than masks for smooth touch makes our COB a good option for VR & AR and various interactive projects

Reliability

No more than 10PPM led failure rate, 5-10 times lower than SMD, which is 50-100PPM. Higher reliability guarantees a longer life span, less maintenance and labor-costs

Easy cleaning

IP43 front waterproof, easily get cleaned with a wet cloth. Waterproof delivers higher protection, therefore higher stability, and more possibilities for installation in high traffic areas

More pixel option

Encapsulated in chip units, our COB displays are available for smaller pixels options. (0.4mm - 1.2mm pixel pitch). With more pixels sharing universal panel frame and components, our COB products have higher versatility and flexibility for various installations

Energy & electricity saving

Our COB displays, with common cathode design, have 30%-50% less power consumption

AMD-MAX Series

  • Replaces your tired LCD display

  • Full Front Service

  • Supports VESA Wall Mounting

  • Lightweight and Ultra Thin

  • Die Cast Aluminum Cabinet

  • Seamless Installation

  • Available 0.9mm-2.5mm Pixel Pitch

More Info

AMD-TI-135 (135") Touch Interactive

  • All-in-One with 20 touchable points

  • Allows writing, circling, and annotating on the whiteboard

  • Multi-device and multi-system wireless screen mirroring for up to 4 devices casting screens at the same time. Support for Android & Windows systems. Easy infrared/Bluetooth wireless remote control

  • Available with either Wall Mount or Rolling Stand

  • Hi-Temp ON Board LED

  • Available 1.5mm Pixel Pitch

More Info

AMD-MC Series

  • 16:9 Ratio (600x337.5)

  • Full Front Service

  • Available SMD and Full Flip Chip COB

  • Wall Mount Installation

  • Thin and Lightweight

  • Die Cast Aluminum Cabinet

  • Seamless Installation

  • Available 0.9mm-2.5mm

More Info

AMD-V Series

  • Available from 0.9mm to 1.8mm

  • 16:9 Aspect Ratio

  • Wall Mount Full Front Service

  • Lightweight and Ultra-thin

  • Die Cast Aluminum Cabinet

  • Seamless Installation

  • Multiple LED Technologies-SMD, COB, HOB, Mini 4 in 1, Micro LED

More Info

AMD-FT Series

  • High Performance 1.9mm and 2.6mm Pixel Pitch

  • Front Service

  • Supports Ceiling, Wall and Floor Installation

  • Lightweight

  • Die Cast Aluminum Cabinet

  • Seamless Installation

  • Supports 90 Degree and Cube Installations

More Info

AMD-R Series

  • Available 2.6mm and 2.9mm

  • Front and Rear Service

  • Supports Hanging and Floor Stacking

  • Lightweight

  • Die Cast Aluminum Cabinet

  • Seamless Installation

  • Built in Curve Function, Concave and Convex

More Info

AMD-RD Series

  • Front and Rear Service

  • Supports Wall, Ceiling and Floor Installation

  • Lightweight

  • Die Cast Aluminum Cabinet

  • Seamless Installation

  • Available 2.6mm (500x500mm) and (500x1000mm)

More Info

Mini LED Advantages

Viewing Distance Calculations for Directview LED Walls

Acceptable viewing distance is subjective; it’s whatever a viewer perceives to be acceptable. There are, however, basic calculations to determine acceptable viewing distance.

Choosing the perfect LED wall size doesn’t have to be complicated. Use our LED screen size estimator to visualize your setup by estimating height, width, and total display area. This ensures your screen design fits your space and meets your audience’s viewing expectations.

We are a Specialty Display Solutions provider of Directview LED displays and LCD Digital Signage display to the Dealer Channel. We offer solutions for both Indoor and Outdoor applications.
