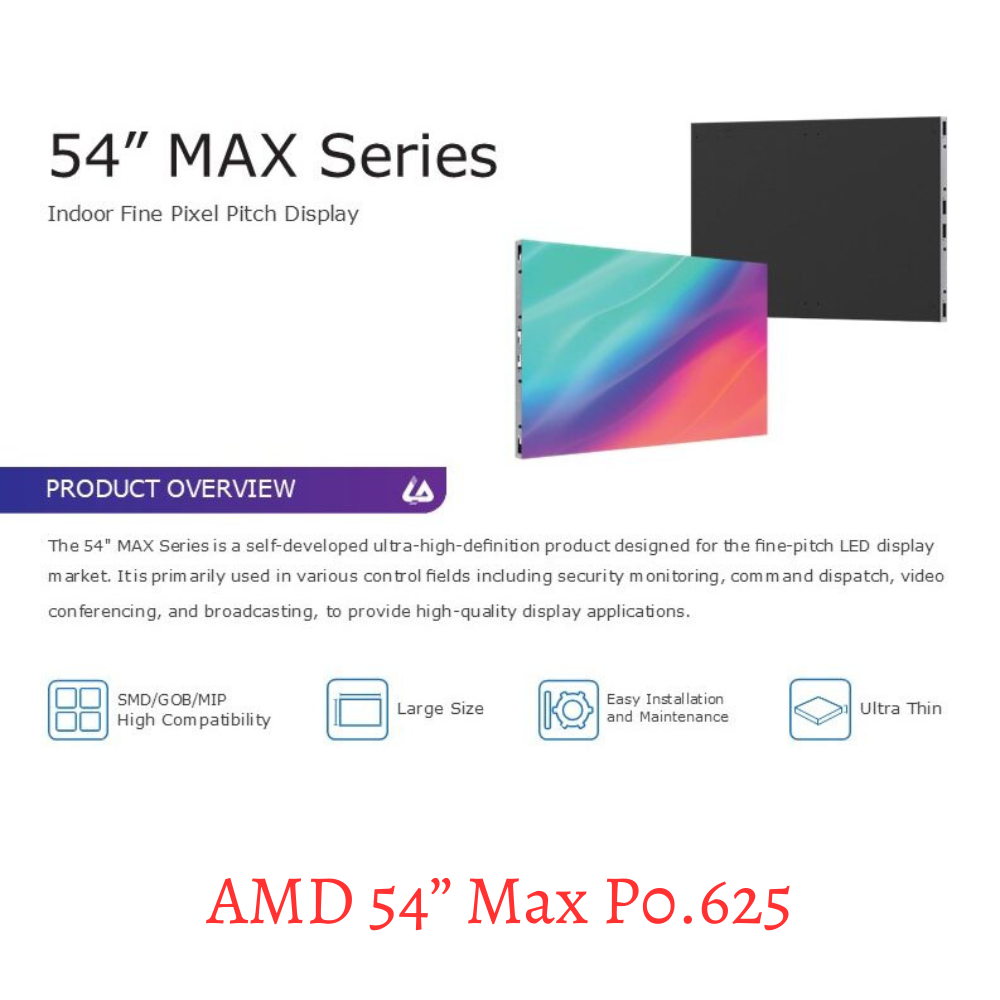

AMD 54” Max P0.625 – Indoor LED Video Wall Display

AMD 54” Max P0.625 Indoor LED Video Wall Display Solution

Forget everything you know about standard LED walls. The AMD 54” Max P0.625 is built for one thing, which is to deliver a flawless, cinematic viewing experience up close. If you have ever noticed the distracting grid of pixels on a display – the so-called “screen-door effect” – this panel eliminates it.

Think of it as a digital canvas. With an incredibly tight 0.625mm pixel pitch, images, videos, and data visuals appear seamlessly smooth and stunningly detailed, even from just a few feet away. This makes it the go-to choice for mission-critical environments where clarity is king: think broadcast control rooms where every pixel matters, high-end corporate boardrooms presenting to clients, or luxury retail stores showcasing products in breathtaking detail.

We built it to last and to make your life easier. Rugged COB technology is used in these screens. LEDs are protected right on the board, which makes the panel more durable to bumps and dust than other traditional options. This screen is also very thin (just 28mm deep). It is also very energy-efficient and has a power efficiency of 240W/m². Whether your room is dimly lit or flooded with sunlight, with this screen, you can get perfect brightness and color tone. The AMD 54” Max P0.625 isn’t just a display; it’s a reliable, no-compromise visual tool designed to perform brilliantly for over 100,000 hours.

Product Specifications

• Model: AMD 54″ Max P0.625
• Pixel Pitch (mm) – P0.625
• Pixel Density (dots/m²) – 2,560,000
• Cabinet Resolution (mm)(W×H) – 1920×1080
• Pixel Configuration – COB (SMD / IMD / MIP Optional)
• Cabinet Size (mm)(W×H×D) – 1200×675×28
• Brightness (nits) – 200~1000
• Gray Scale (bit) – 14~16
• Color Temp (K) – 2000~12000
• Control System – Synchronous control
• Frame Rate (Hz) – 60
• Refresh Rate (Hz) – 3840~7680
• Working Voltage (V) – AC: 110V~240V, 50~60Hz
• Max. Power Consumption (W/m²) – ≤600
• Avg. Power Consumption (W/m²) – ≤240
• Lifetime (H) – 100,000
• Operation Temp (°C) – -10~+40
• Storage Temp (°C) – -25~+60
• Operation Humidity (RH) – 10%~80%, no condensation
• Cabinet Weight (kg) – 17.5
