AMD 54" Max P0.78 - Indoor LED Video Wall
Description
Experience breathtaking clarity with the AMD 54” Max P0.78. This ultra-fine pitch COB LED display delivers flawless, detailed visuals with a 0.78mm pixel pitch. Ideal for high-end video walls in control rooms and studios, it offers 1000 nits brightness, a 7680Hz refresh rate, and a durable, slim design for stunning 24/7 performance.

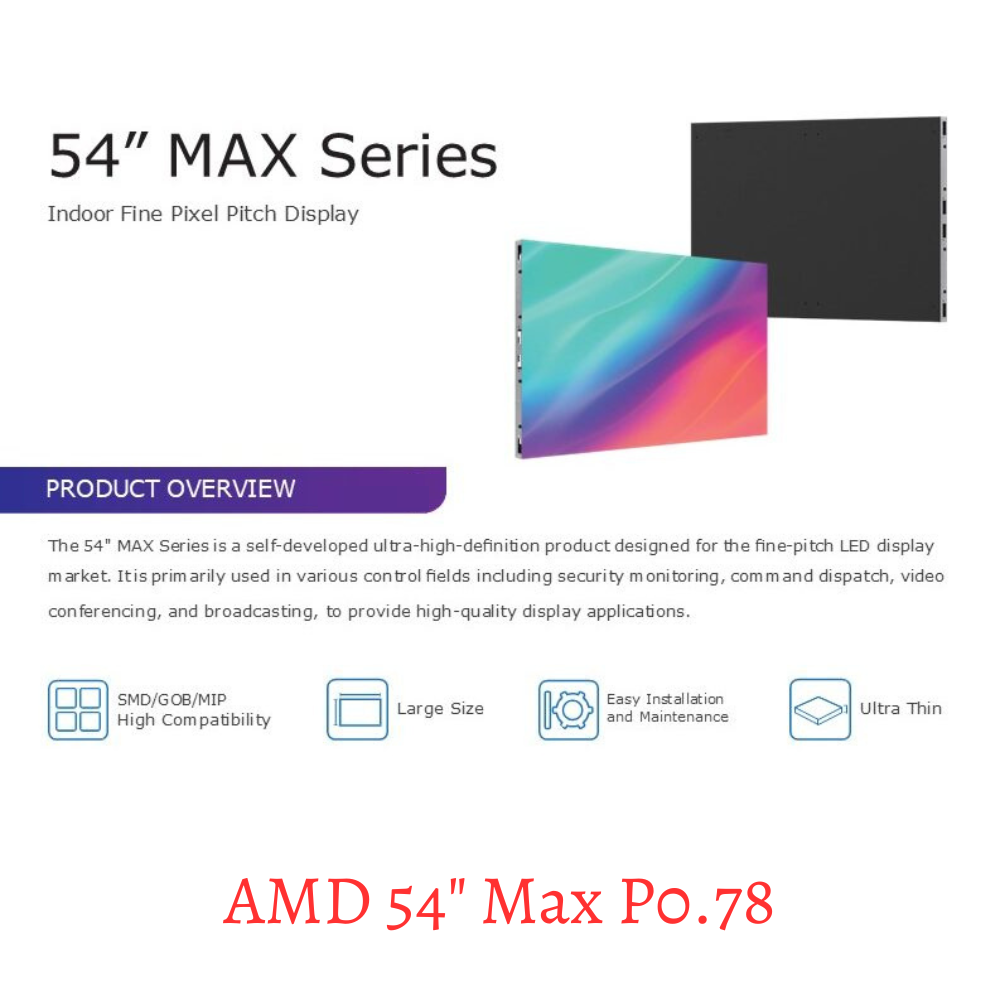

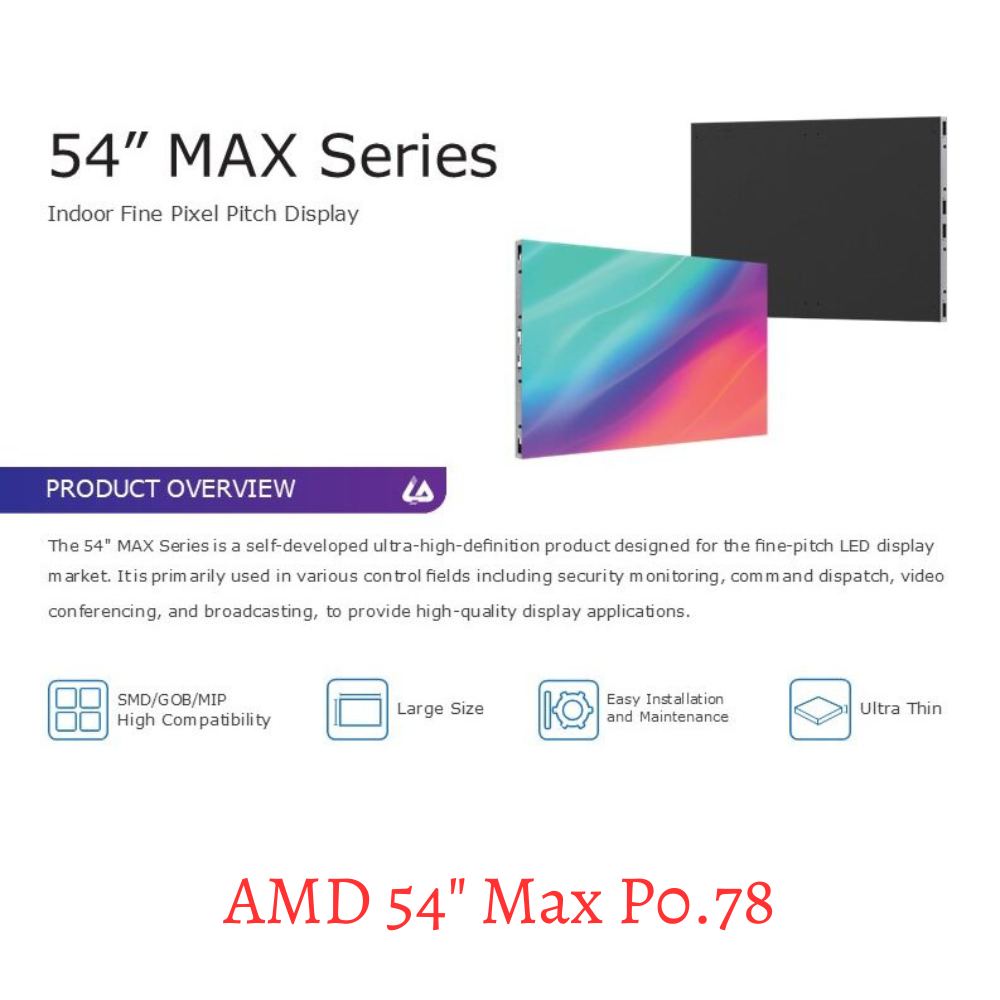

AMD 54″ Max P0.78 Indoor LED Video Wall Display Solution
Forget high-resolution, we have AMD 54” Max P0.78 for you that redefines what’s possible on an LED canvas. It is designed for the most demanding environments where every pixel and every decision counts. This is not just a display cabinet, but a flawless visual intelligence.
This video wall is very sharp and thin that when you put it on the wall, it disappears, leaving only your stunning content with lifelike detail. This screen features a 0.78mm pixel pitch, resulting in over 1.6 million pixels per square meter. Whether your team is monitoring complex data feeds in a 24/7 control room, presenting to executives in a boardroom, or creating an immersive brand experience in a flagship store, the Max P0.78 delivers breathtaking clarity without the annoying “screen-door effect.”
We built it for reliability. Using rugged COB technology, the LEDs are protected like never before, offering incredible durability against bumps, moisture, and dust. This means a smoother image, wider viewing angles, and peace of mind for round-the-clock operation. Need perfect color under any light? Adjust the brightness up to 1000 nits and fine-tune the color temperature from a warm studio glow to cool daylight, all to match your exact environment.
The magic is in the motion, too. With a blistering refresh rate, say goodbye to blurry camera captures and eye strain. Video and data visualizations scroll with buttery smoothness, keeping your audience focused and engaged. Sleek, lightweight, and incredibly thin at just 28mm deep, it installs cleanly and fits where other displays can’t.
Product Specifications
- Pixel Pitch (mm) – P0.78
- Pixel Density (dots/m²) – 1,638,400
- Cabinet Resolution (mm)(W×H) – 1536×864
- Pixel Configuration – COB (SMD / IMD / MIP Optional)
- Cabinet Size (mm)(W×H×D) – 1200×675×28
- Brightness (nits) – 200~1000
- Gray Scale (bit) – 14~16
- Color Temp (K) – 2000~12000
- Control System – Synchronous control
- Frame Rate (Hz) – 60
- Refresh Rate (Hz) – 3840~7680
- Working Voltage (V) – AC: 110V~240V, 50~60Hz
- Max. Power Consumption (W/m²) – ≤600
- Avg. Power Consumption (W/m²) – ≤240
- Lifetime (H) – 100,000
- Operation Temp (°C) – -10~+40
- Storage Temp (°C) – -25~+60
- Operation Humidity (RH) – 10%~80%, no condensation
- Cabinet Weight (kg) – 17.5
