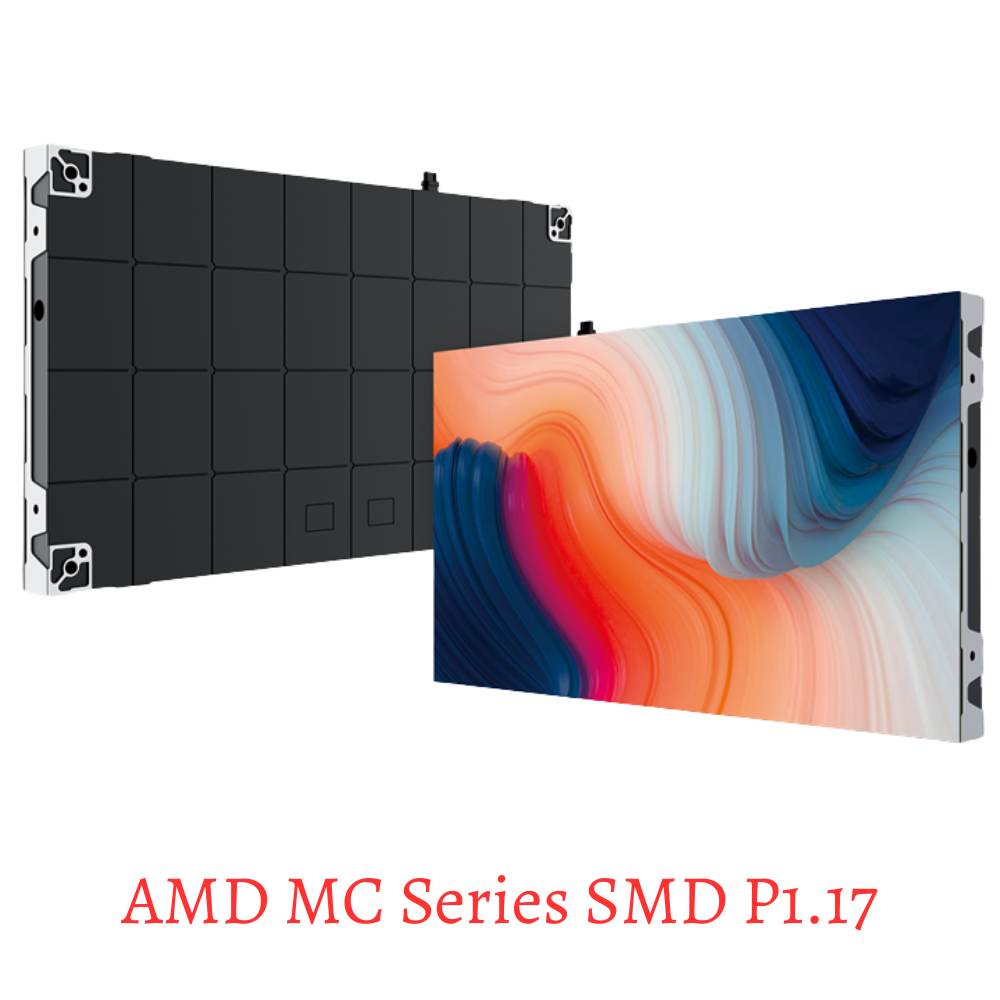

AMD MC Series SMD P1.17 – Indoor LED Video Wall Display

AMD MC Series SMD P1.17 – Ultra HD Indoor LED Video Wall Display Solution

This LED screen is different from other screens; it is built for environments where detail and reliability are non-negotiable. This screen is used in security monitoring centers, broadcast studios, and corporate command rooms where every detail matters. This screen has an exceptional 728,270 pixels per square meter. This ultra-fine 1.17mm pixel pitch completely eliminates the “screen door” effect and delivers high-resolution video, helping you see screens from any viewing distance.

This screen has stunning image quality. This screen service is straightforward compared to others. This screen has low power consumption and a robust 100,000-hour lifespan, making it a wise, sustainable investment. Whether you are managing a 24/7 security hub or elevating a boardroom for high-stakes presentations, the AMD MC Series SMD P1.17 provides the flawless visual performance and dependable operation you can count on.

Product Specification

• Pixel Pitch (mm) – P1.17
• Cabinet Resolution (mm)(W×H) – 512×288
• Pixel Density (dots/m²) – 728,270
• Cabinet Size (mm)(W×H) – 600×337.5
• Brightness (nits) – ≤800
• Gray Scale (bit) – 14~16
• Pixel Calibration – Support brightness and color calibration
• Color Temp (K) – 2000~12000 (Adjustable)
• Control System – Synchronous control
• Drive Mode – Constant current drive (Compatible)
• Frame Rate (Hz) – 50/60
• Refresh Rate (Hz) – ≥3840
• Working Voltage (V) – AC: 100V~240V, 50~60Hz
• Max. Power Consumption (W/m²) – ≤725
• Avg. Power Consumption (W/m²) – ≤280
• Lifetime (H) – 100,000
• Operation Temp (°C) – -10~+40
• Storage Temp (°C) – -20~+60
• Operation Humidity (RH) – 10%~80%, no condensation
• Cabinet Weight (kg) – 5.1/7.7
