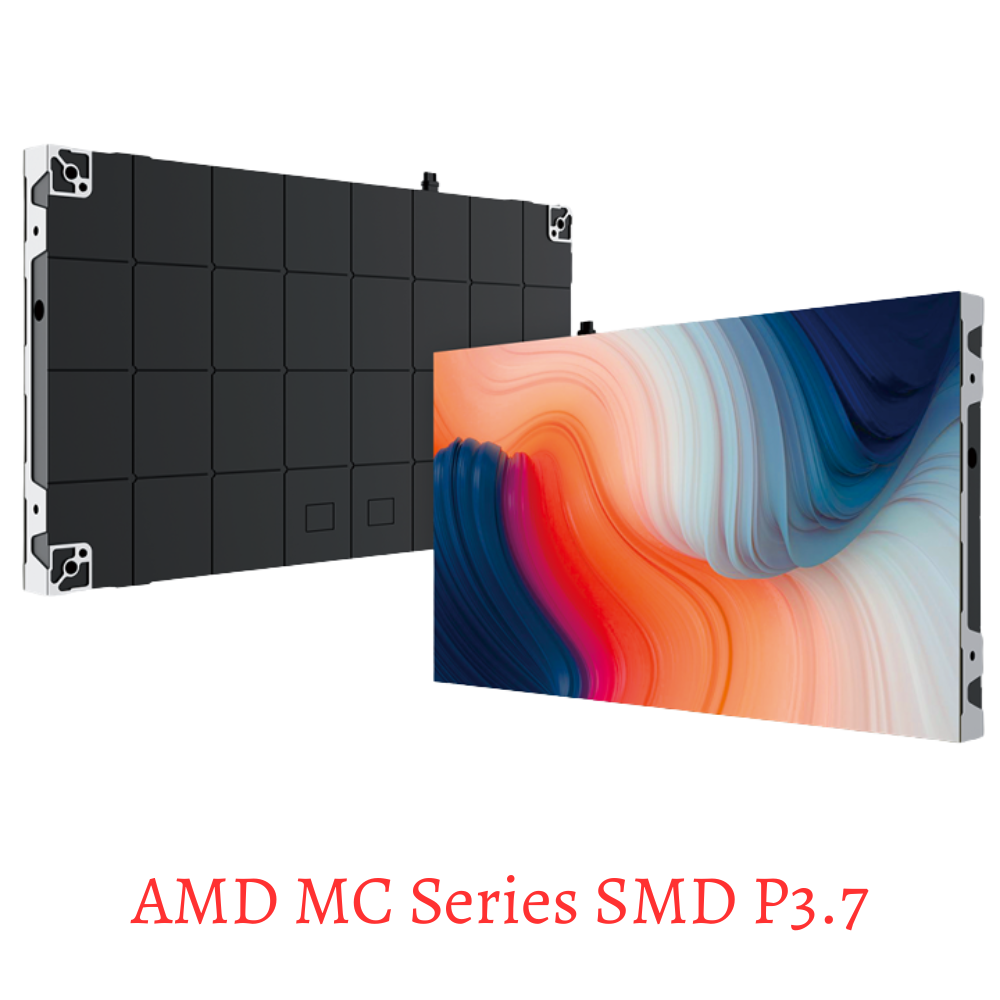

AMD MC Series SMD P3.7 – Indoor LED Video Wall Display

AMD MC Series SMD P3.7 – Ultra HD Indoor LED Video Wall Display Solution

If you are looking for a premium fine-pitch LED display solution, then we have AMD MC Series SMD P3.7 for you. This display is designed for the ultra-HD definition visual performance in professional indoor environments. It is also designed for security monitoring, command-and-control centers, video conferencing, and broadcast studios where details matter the most. This display provides exceptional clarity to customers, enabling them to manage tasks easily and avoid mistakes while monitoring.

This screen has a pixel pitch of just 3.7mm, which delivers good image quality for close-up viewing and monitoring. This screen also maintains deep contrast and superior color reproduction. If the screen has reduced brightness levels, it also ensures comfortable viewing over extended periods without eye strain. The purpose of this screen is to provide operational support for mission-critical tasks. You can use this screen for a long time and require less maintenance. This screen also consumes less power, helping save electricity.

Product Specification

• Pixel Pitch (mm) – P3.7
• Cabinet Resolution (mm)(W×H) – 160×90
• Pixel Density (dots/m²) – 71,111
• Cabinet Size (mm)(W×H) – 600×337.5
• Brightness (nits) – ≤1200
• Gray Scale (bit) – 14~16
• Pixel Calibration – Support brightness and color calibration
• Color Temp (K) – 2000~12000 (Adjustable)
• Control System – Synchronous control
• Drive Mode – Constant current drive (Compatible)
• Frame Rate (Hz) – 50/60
• Refresh Rate (Hz) – ≥3840
• Working Voltage (V) – AC: 100V~240V, 50~60Hz
• Max. Power Consumption (W/m²) – ≤660
• Avg. Power Consumption (W/m²) – ≤260
• Lifetime (H) – 100,000
• Operation Temp (°C) – -10~+40
• Storage Temp (°C) – -20~+60
• Operation Humidity (RH) – 10%~80%, no condensation
• Cabinet Weight (kg) – 5.1/7.7
