AMD-R 1.9 – Indoor LED Video Wall Display

AMD-R 1.9 – 1.9mm Fine Pitch Indoor LED Video Wall Display with Die-Cast Aluminum Panel

Command attention with the AMD-R 1.9, a premium fine-pitch LED display designed for flawless visual performance in demanding indoor environments. Featuring an ultra-dense 1.9mm pixel pitch with SMD1515 technology, it delivers incredibly sharp detail and smooth content with over 281 trillion colors.

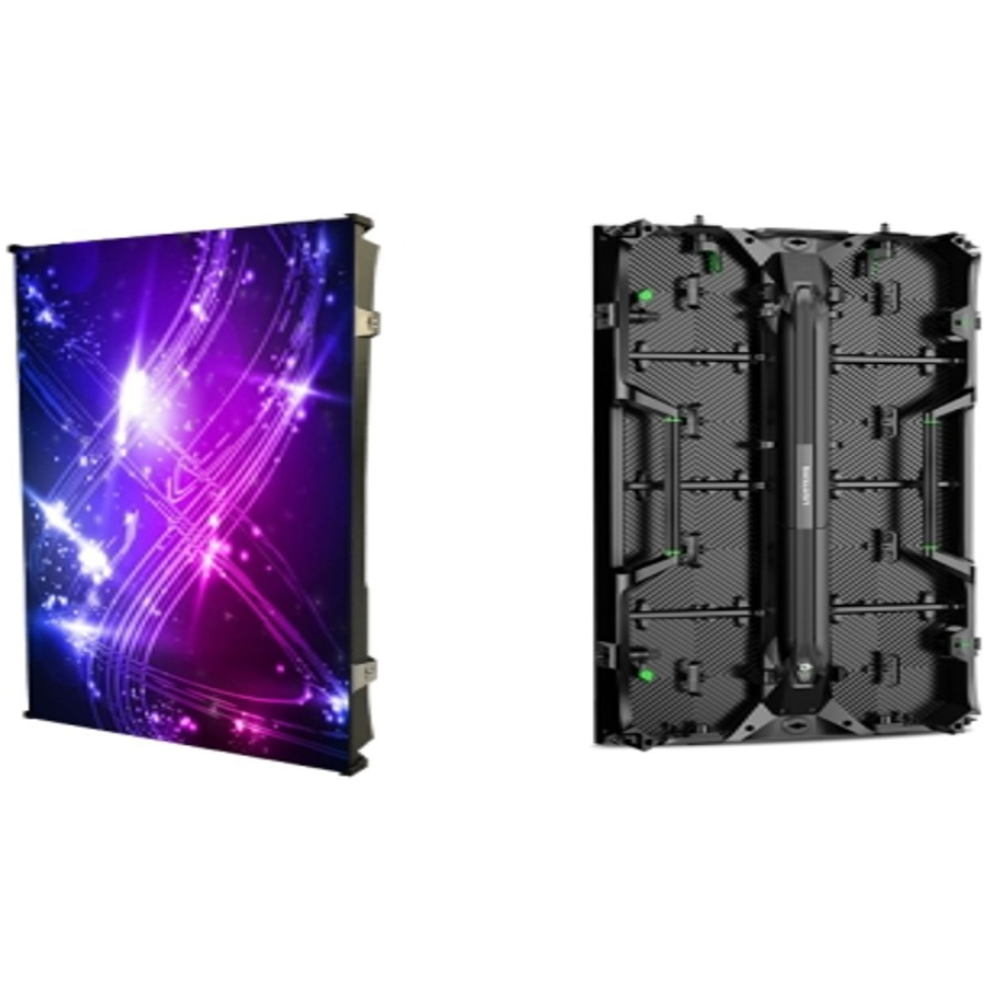

Housed in a robust die-cast aluminum cabinet, the AMD-R 1.9 is engineered for durability and easy installation, offering both front and rear serviceability. Ideal for broadcast studios, corporate boardrooms, and command centers, this display combines high brightness, a 4000:1 contrast ratio, and a 100,000-hour lifetime to provide a reliable and stunning visual solution.

Product Specification

Display & Image Quality

• Pixel Pitch: 1.9mm
• Pixel Configuration: SMD1515
• Pixel Density: 262,144 pixels/m²
• Contrast Ratio: 4,000:1
• Brightness: ≥ 600 nits
• Color Depth: 281 Trillion Colors
• Processing: 16-bit
• Refresh Rate: > 3,840Hz
• Viewing Angle: Horizontal 160° / Vertical 140°

Physical Structure

• Module Dimensions (W×H): 250 × 250 mm
• Panel Dimensions (W×H×D): 500 × 500 × 80 mm
• Modules Per Panel: 2 × 2
• Panel Material: Die-Cast Aluminum
• Single Cabinet Weight: 8 / 14 kg per panel
• Servicing: Front / Rear
• IP Rating: IP40 (Front) / IP21 (Rear)

Resolution

• Module Resolution (W×H): 128 × 128 pixels
• Panel Resolution (W×H): 256 × 256 pixels

Power & Reliability

• Average Power Consumption: 64 / 128 W per panel
• Max Power Consumption: 192 / 384 W per panel
• Expected Lifetime: 100,000 Hours

Environmental

• Operating Temp/Humidity: -10℃ to 60℃ / 10% to 60%
• Storage Temp/Humidity: -30℃ to 60℃ / 10% to 60%

Installation & Certifications

• Max Stacking: 20 / 10
• Max Hanging: 20 / 10
• Certifications: CCC, CE, ETL, RoHS
