AMD 54″ Max P1.25 – Indoor LED Video Wall Display

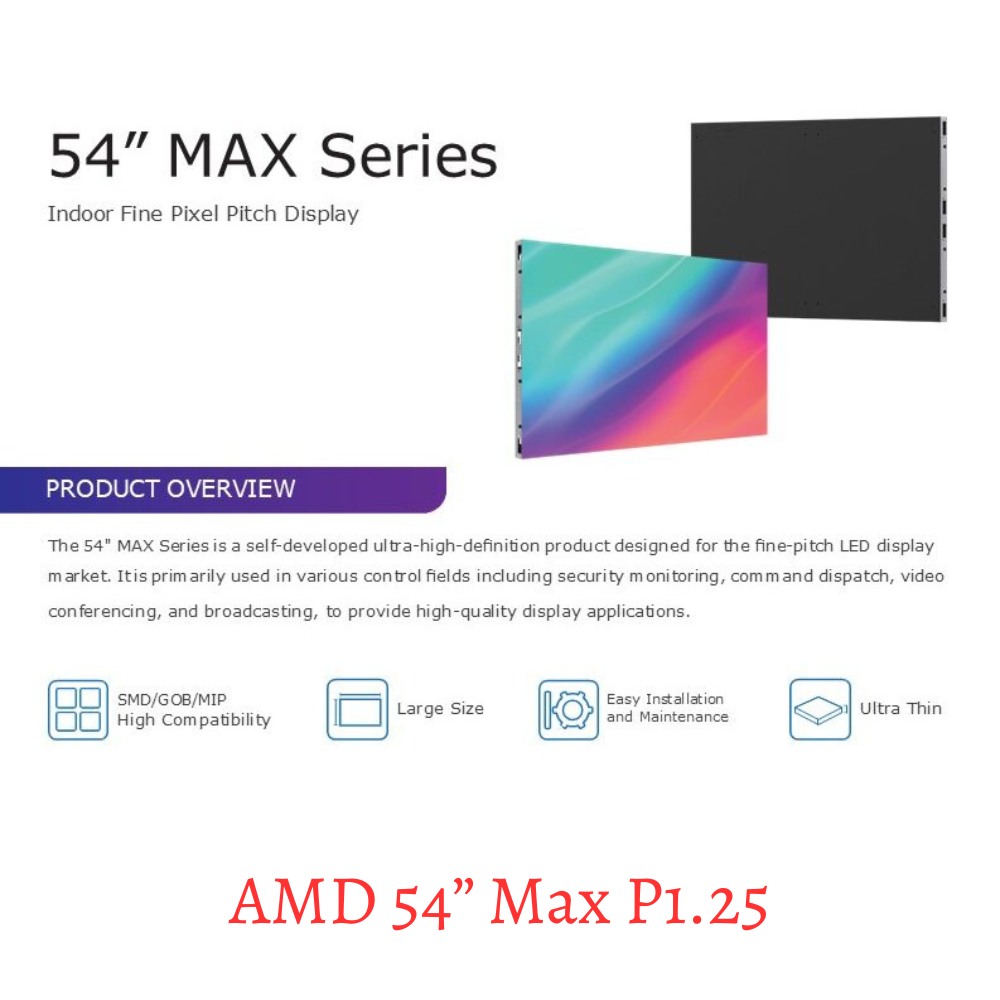

AMD 54” Max P1.25 Indoor LED Video Wall Display Solution

Screen clarity is very important whether you are in a control room, the boardroom, or the broadcast studio. The AMD 54” Max P1.25 is built for these spaces. This LED panel differs from other screens because it is a large panel designed to reduce installation time and complexity.

This is like a building block, which is perfect for your wall. Each cabinet is a full 54 inches diagonal. It is the largest standardized unit on the market, which means you need fewer cabinets to cover a wall. It makes for faster installation, as less hardware is required to build a wall. It has an ultra-thin 28mm profile, helping save crucial space.

We understand that different projects have different needs, which is why AMD 54” Max P1.25 is built differently. It has multiple pixel packaging technologies (COB, SMD, IMD, MIP) to match your exact requirements for brightness, viewing angle, and durability.

It also has a robust lifespan of 100,000 hours. It has a wide operating temperature range, which makes it suitable for 24/7 reliability. Don’t make your choice complex, choose smart AMD 54” Max P1.25.

Product Specification

• Pixel Pitch (mm) – P1.25
• Pixel Density (dots/m²) – 640,000
• Cabinet Resolution (mm)(W×H) – 960×540
• Pixel Configuration – COB (SMD / IMD / MIP Optional)
• Cabinet Size (mm)(W×H×D) – 1200×675×28
• Brightness (nits) – 200~1000
• Gray Scale (bit) – 14~16
• Color Temp (K) – 2000~12000
• Control System – Synchronous control
• Frame Rate (Hz) – 60
• Refresh Rate (Hz) – 3840~7680
• Working Voltage (V) – AC: 110V~240V, 50~60Hz
• Max. Power Consumption (W/m²) – ≤450
• Avg. Power Consumption (W/m²) – ≤180
• Lifetime (H) – 100,000
• Operation Temp (°C) – -10~+40
• Storage Temp (°C) – -25~+60
• Operation Humidity (RH) – 10%~80%, no condensation
• Cabinet Weight (kg) – 17.5
