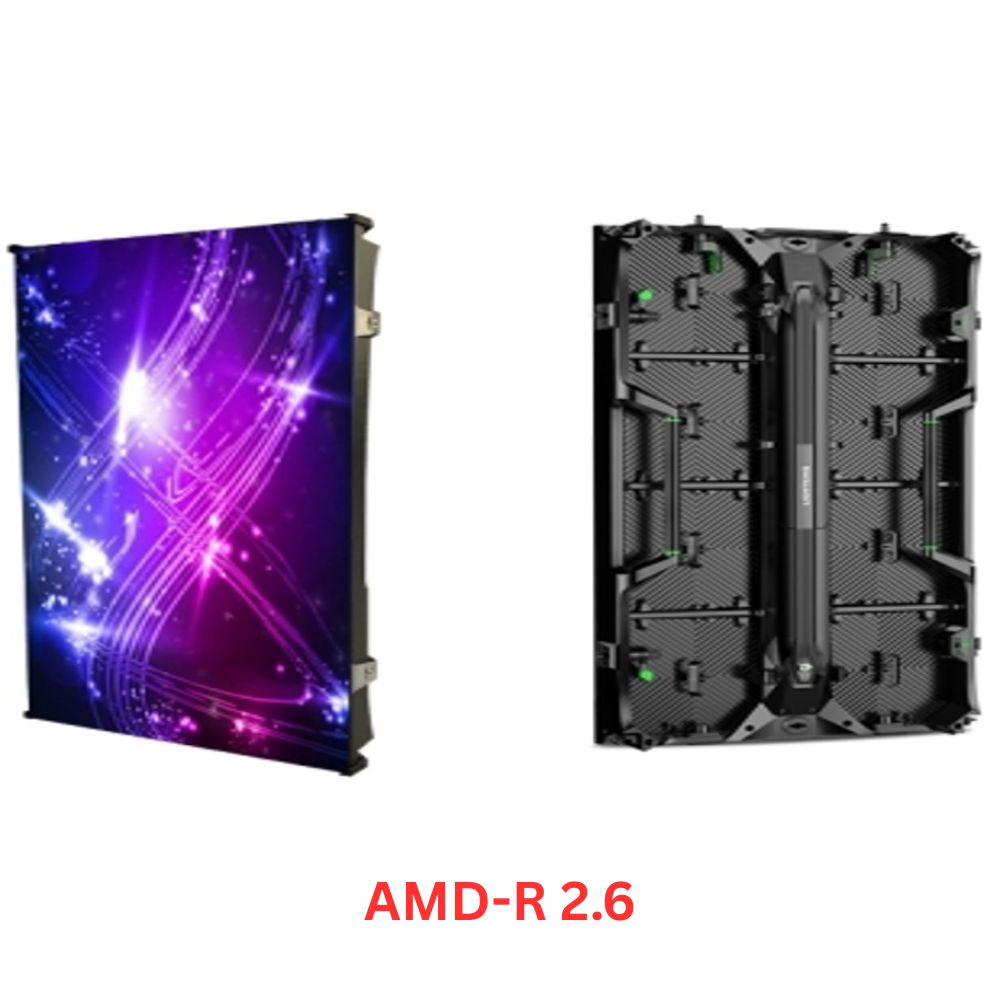

AMD-R 2.6 – Indoor LED Video Wall Display

AMD-R 2.6 Fine Pitch LED Video Wall – High-Definition Indoor Display

Presenting the AMD-R 2.6, a state-of-the-art fine pitch LED display engineered for exceptional image quality and reliability in demanding indoor environments. With its 2.6mm pixel pitch and high pixel density, it delivers incredibly sharp and lifelike visuals, making it perfect for broadcast studios, corporate boardrooms, and high-end retail spaces.

Built with a robust die-cast aluminum cabinet, this panel offers seamless installation and long-term stability. The AMD-R 2.6 combines brilliant color performance, low power consumption, and flexible servicing options to provide a superior and cost-effective visual solution.

Product Specification

Here are the comprehensive technical specifications for the AMD-R 2.6:

• Pixel Pitch – 2.6mm
• Pixel Configuration – SMD2121
• Pixel Density – 147,456 pixels/m²
• Module Dimensions (W×H) –  250mm × 250mm
• Panel Dimensions (W×H×D) – 500×500×80mm / 500×1000×80mm
• Modules Per Panel – 2×2 / 2×4
• Module Resolution (W×H) – 96 × 96 pixels
• Panel Resolution (W×H) – 192×192 / 192×384 pixels
• Panel Material – Die-Cast Aluminum
• Single Cabinet Weight – 8kg / 14kg
• Color Processing – 16-bit
• Colors – 281 Trillion
• Contrast Ratio – 4,000 : 1
• Average Power Consumption – 64 W / 128 W per panel
• Max Power Consumption – 192 W / 384 W per panel
• Brightness – ≥ 600 nits
• Refresh Rate – > 3,840 Hz
• Horizontal Viewing – Angle 160°
• Vertical Viewing – Angle 140°
• Operating Temp/Humidity – -10℃ to 60℃ / 10% to 60%
• Storage Temp/Humidity – -30℃ to 60℃ / 10% to 60%
• Expected Lifetime – 100,000 Hours
• Max Stacking – 20 / 10 panels
• Max Hanging – 20 / 10 panels
• Servicing – Front / Rear
• IP Rating (Front/Rear) – IP40 / IP21
• Certification – CCC, CE, ETL, RoHS
