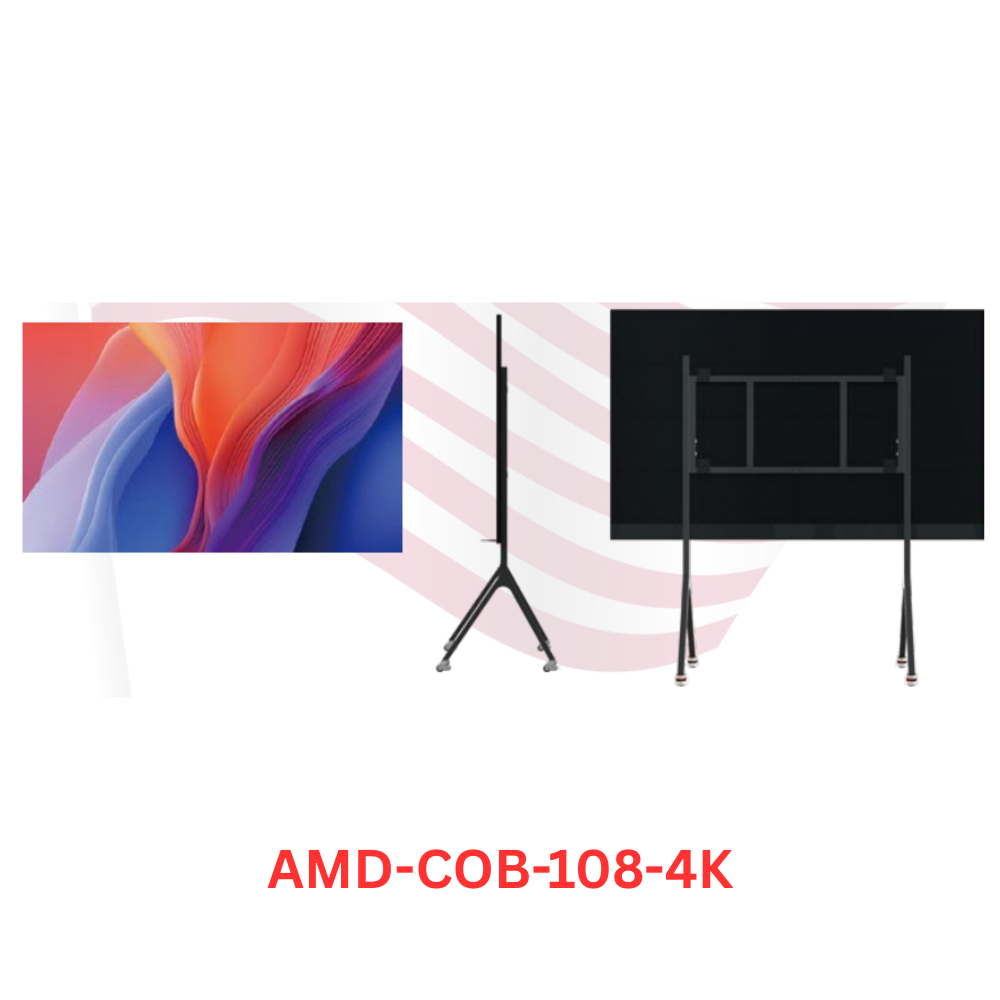

AMD-COB-108-4K – Indoor LED Video Wall Display

AMD-COB-108-4K HD Indoor LED Video Wall Display Solution

Tired of LED displays that look good from far away but pixelated up close? Meet the AMD-COB-108-4K – the display that brings breathtaking, seamless 4K clarity to even the most demanding environments. Whether you’re wowing clients in a corporate lobby, broadcasting live from a studio, or creating an immersive retail experience, this panel is built to perform.

We use advanced Chip-on-Board (COB) technology, which means the LEDs are embedded directly into the board. The surface is incredibly smooth and flat. This surface is not only rugged and durable but also resistant to bumps, moisture, and dust. It also delivers a stunningly uniform image without any dark spots. You get vibrant color, deep blacks, and buttery-smooth motion, all while enjoying peace of mind from its 100,000-hour lifespan. This is not just a screen; it’s a reliable investment in superior visual impact.

Product Specification

Here are the detailed technical specifications for the AMD-COB-108-4K:

Model: AMD-COB-108-4K

PHYSICAL PARAMETERS

• Pixel Pitch: P0.625 mm
• Pixel Configuration: COB (Chip-on-Board)
• Display Size (W×H): 2400 mm × 1350 mm
• Overall Weight: 80 kg

OPTICAL PARAMETERS

• Resolution (W×H): 3840 × 2160 (4K UHD)
• Frame Rate: 50/60 Hz
• Refresh Rate: 3840 ~ 7680 Hz
• Brightness: 1000 nits
• Gray Scale: 14~16 bit
• Color Temperature: 2000 ~ 12000 K

ELECTRICAL PARAMETERS

• Max. Power Consumption: ≤ 1940 W
• Avg. Power Consumption: ≤ 770 W
• Working Voltage: AC 110V~240V, 50~60Hz

ADDITIONAL FEATURES

• Lifetime: 100,000 Hours
• Operation Humidity: 10% ~ 80% RH
