AMD MC Series FLIP CHIP MIP P1.56 – Indoor LED Video Wall Display

AMD MC Series FLIP CHIP MIP P1.56 – Ultra HD Indoor LED Video Wall Display Solution

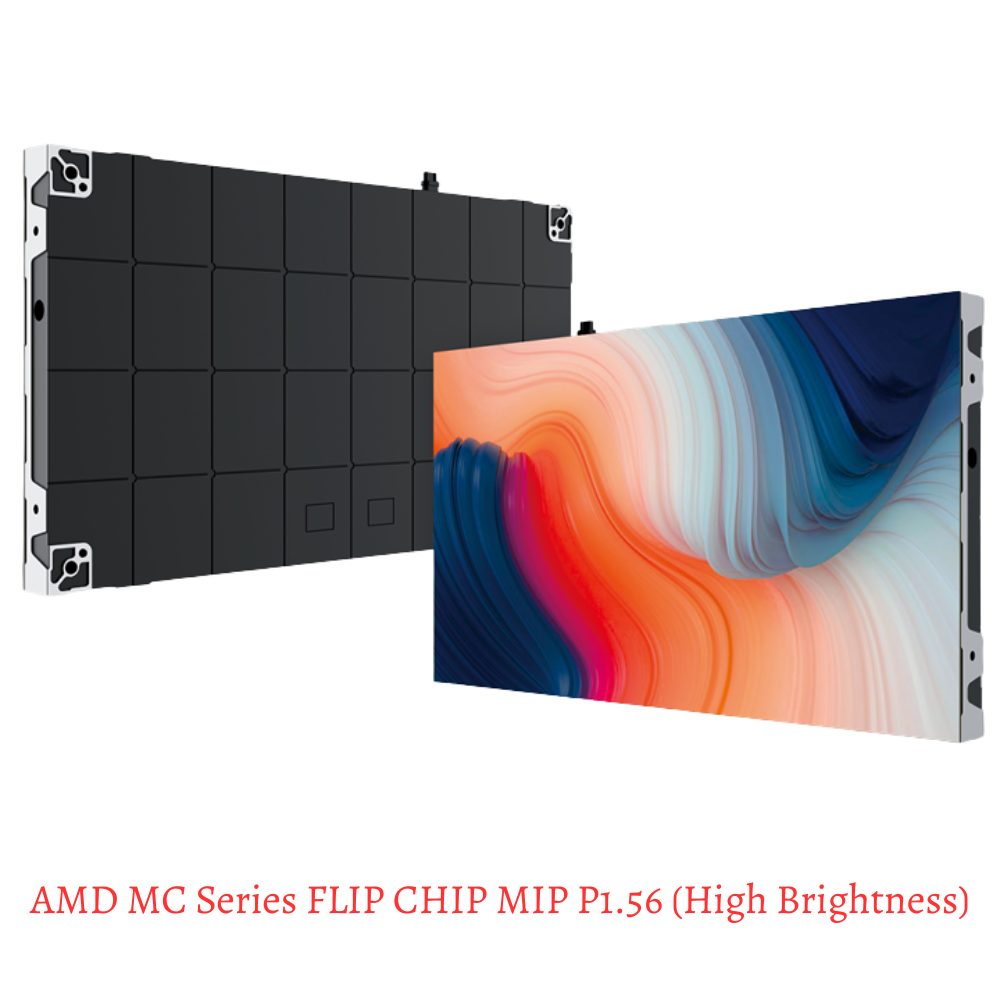

The AMD MC Series FLIP CHIP MIP P1.56 is an ultra-high-definition indoor LED display engineered for mission-critical environments where visual clarity and reliability are paramount. This model, featuring the High Brightness variant, delivers an impressive ≤4000 nits, making it ideal for high-ambient-light settings such as broadcast studios, command centers, and video conferencing suites.

Designed with advanced MIP and full-flip-chip common-cathode technology, this display achieves over 30% power savings compared to traditional SMD panels while providing superior heat dissipation. The P1.56 fine-pixel pitch delivers an ultra-smooth, seamless image with a pixel density of 409,600 dots/m², eliminating the “screen door” effect for viewers up close.

Key benefits include fully front maintenance for easy servicing, a robust refresh rate of ≥3840Hz for flicker-free camera recording, and a 100,000-hour lifetime. The AMD MC Series FLIP CHIP MIP P1.56 combines high-impact brightness with exceptional grayscale, ensuring vibrant colors and deep contrast even at low brightness levels for professional 24/7 operation.

Product Specification

• Pixel Pitch (mm) – P1.56
• Cabinet Resolution (mm)(W×H) – 384×216
• Pixel Density (dots/m²) – 409,600
• Cabinet Size (mm)(W×H) – 600×337.5
• Brightness (nits) – ≤4000
• Gray Scale (bit) – 14~16
• Pixel Calibration – Support brightness and color calibration
• Color Temp (K) – 2000~12000 (Adjustable)
• Control System – Synchronous control
• Drive Mode – Constant current drive (Compatible)
• Frame Rate (Hz) – 50/60
• Refresh Rate (Hz) – ≥3840
• Working Voltage (V) – AC: 100V~240V, 50~60Hz
• Max. Power Consumption (W/m²) – ≤720
• Avg. Power Consumption (W/m²) – ≤280
• Lifetime (H) – 100,000
• Operation Temp (°C) – -10~+40
• Storage Temp (°C) – -20~+60
• Operation Humidity (RH) – 10%~80%, no condensation
• Cabinet Weight (kg) – 5.1/7.7
