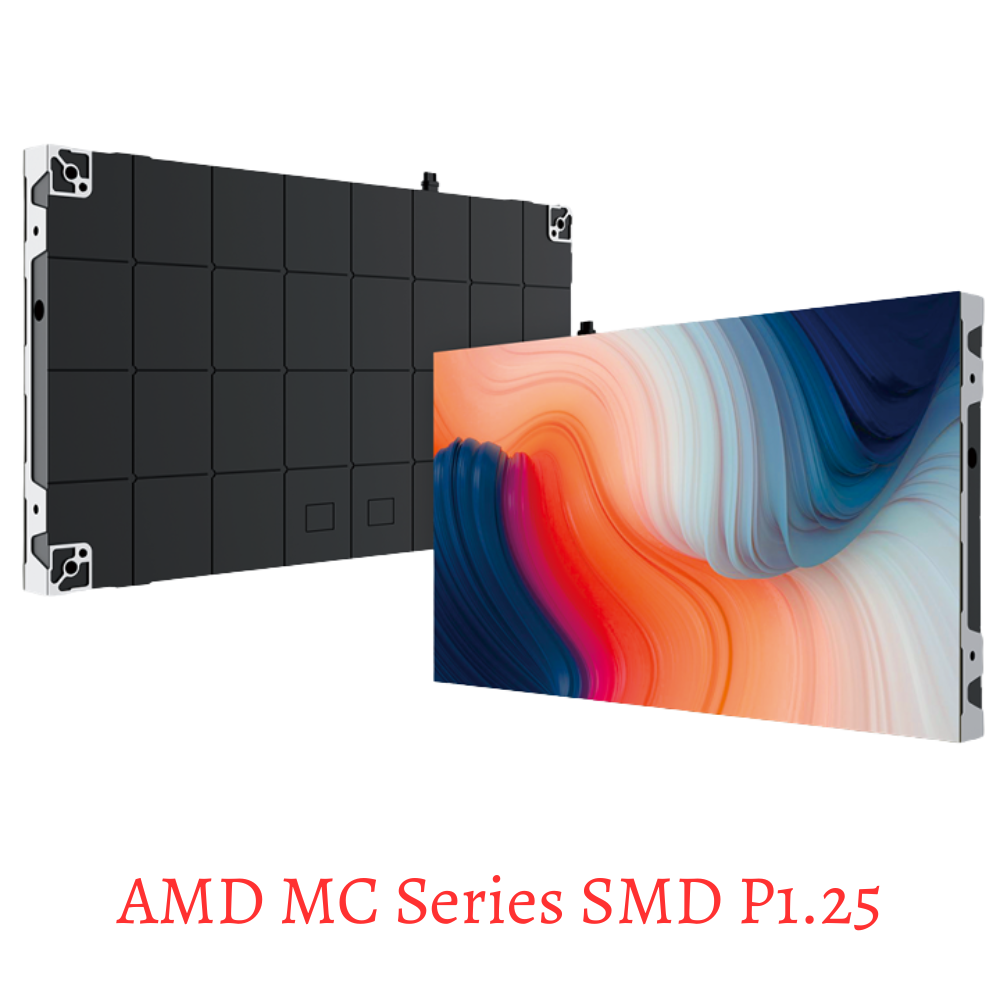

AMD MC Series SMD P1.25 – Indoor LED Video Wall Display

AMD MC Series SMD P1.25 – Ultra HD Indoor LED Video Wall Display Solution

We have many LED displays, but if you are looking for a premium indoor LED display, then this AMD MC Series SMD P1.25 is for you. It has an ultra-fine 1.25 mm pixel pitch, which provides truly high-quality images. These LED displays are best suited for control rooms, broadcast studios, security monitoring centers, and command-and-control applications where precision and clarity are very important.

This LED display has one of the best adjustable color temperature ranges, from 2000K to 12000K. This feature lets you adjust the screen colors in different environments. It’s 14–16-bit grayscale capability ensures smooth color transitions. It can also maintain consistent image quality over time. It is a very slim display, making installation straightforward whether mounted on a wall or suspended.

This display can also handle live video and fast-moving content smoothly due to the high refresh rate of ≥3840 Hz. You can also operate this display in -10 °C to +40 °C. It is one of the best-rated displays, rated for up to 100,000 hours.

Product Specification

• Pixel Pitch (mm) – P1.25
• Cabinet Resolution (mm)(W×H) – 480×270
• Pixel Density (dots/m²) – 640,000
• Cabinet Size (mm)(W×H) – 600×337.5
• Brightness (nits) – ≤800
• Gray Scale (bit) – 14~16
• Pixel Calibration – Support brightness and color calibration
• Color Temp (K) – 2000~12000 (Adjustable)
• Control System – Synchronous control
• Drive Mode – Constant current drive (Compatible)
• Frame Rate (Hz) – 50/60
• Refresh Rate (Hz) – ≥3840
• Working Voltage (V) – AC: 100V~240V, 50~60Hz
• Max. Power Consumption (W/m²) – ≤725
• Avg. Power Consumption (W/m²) – ≤280
• Lifetime (H) – 100,000
• Operation Temp (°C) – -10~+40
• Storage Temp (°C) – -20~+60
• Operation Humidity (RH) – 10%~80%, no condensation
• Cabinet Weight (kg) – 5.1/7.7
