AMD V0.9 Series – Indoor LED Video Wall Display

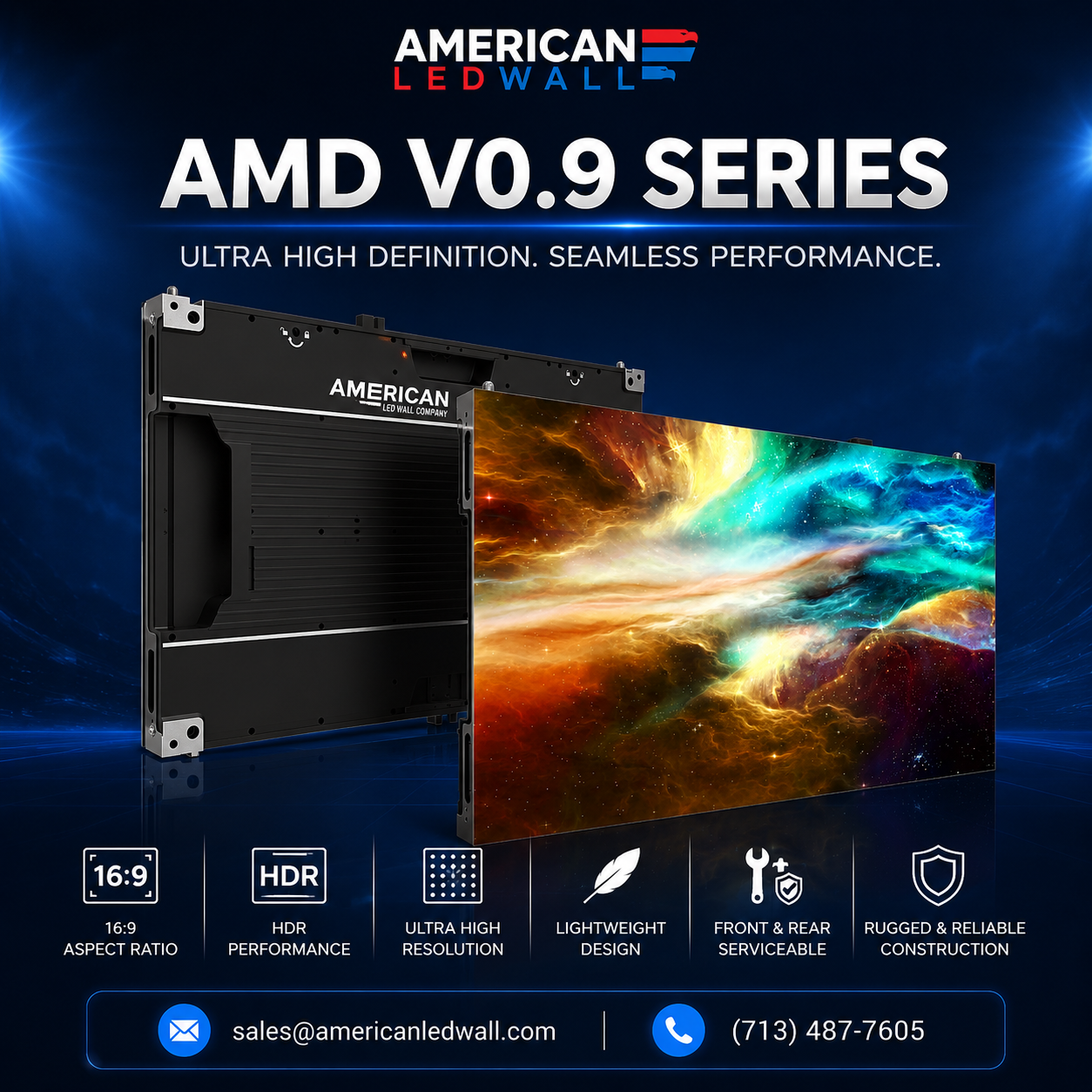

AMD V0.9 Series – Ultra-Fine Indoor LED Video Wall Display Solution

If you are looking for a display that truly showcases high-resolution content, the AMD V0.9 Series LED Display is for you. You must consider this display because it has a 0.9mm pixel pitch and IMD LED technology, which results in good image quality. If you think of mission-critical environments like broadcast studios, control rooms, high-end retail spaces, or any corporate space where image quality matters because every detail counts, then this screen is for you.

Beyond its visuals, what makes this screen practical is how it is put together. The cabinet of the screen is just 33mm thin and weighs 4.5kg, which makes it less heavy and also does not put pressure on the supporting structure. This helps the installation process go more easily. With a 16:9 panel ratio, you can play your 4K or 8K content exactly as intended; you dont have to face awkward cropping or scaling. One of the best things about this screen is that if you are working in an unusual space, it supports corner and curved configurations. You dont have to worry about the flat rectangular setup.

Maintenance is handled from the front, which matters more than people realize until they are actually dealing with a screen mounted flush against a wall. With a rated lifespan of 100,000 hours and a robust die-cast aluminum build, the AMD V0.9 Series LED Display is the kind of investment that holds up well over time – both in performance and in appearance.

Product Specification

• Model – AMD-V0.9 Series
• Pixel Pitch (mm) – 0.9
• Pixel Density (dot/m²) – 1137778
• LED Type – IMD
• Module Size W×H (mm) – 300*168.75
• Module Resolution W×H (pixel) – 320*180
• Panel Size W×H×D (mm) – 600*337.5*33
• Panel Resolution W×H (pixel) – 640*360
• Panel Material – Die-casting Aluminum
• Weight (Kg/pc) – 4.5
• Brightness (cd/m²) – 600
• Brightness Adjustment – Programmable/Automatic/Manual
• Viewing Angle (H/V) – 160°/160°
• Frame Rate (Hz) – 50/60
• Refresh Rate (Hz) – 3840
• Contrast Ratio – 8000:1
• Color Temperature (K) – 2000～10000 (Adjustable)
• Voltage (V) AC – 100-240
• Maximum Power Consumption (W/㎡) – 600
• Average Power Consumption (W/㎡) – 200
• Serviceability – Front
• IP Rating Front – IP30/Rear IP60
• LED Lifetime (Hours) – 100000
