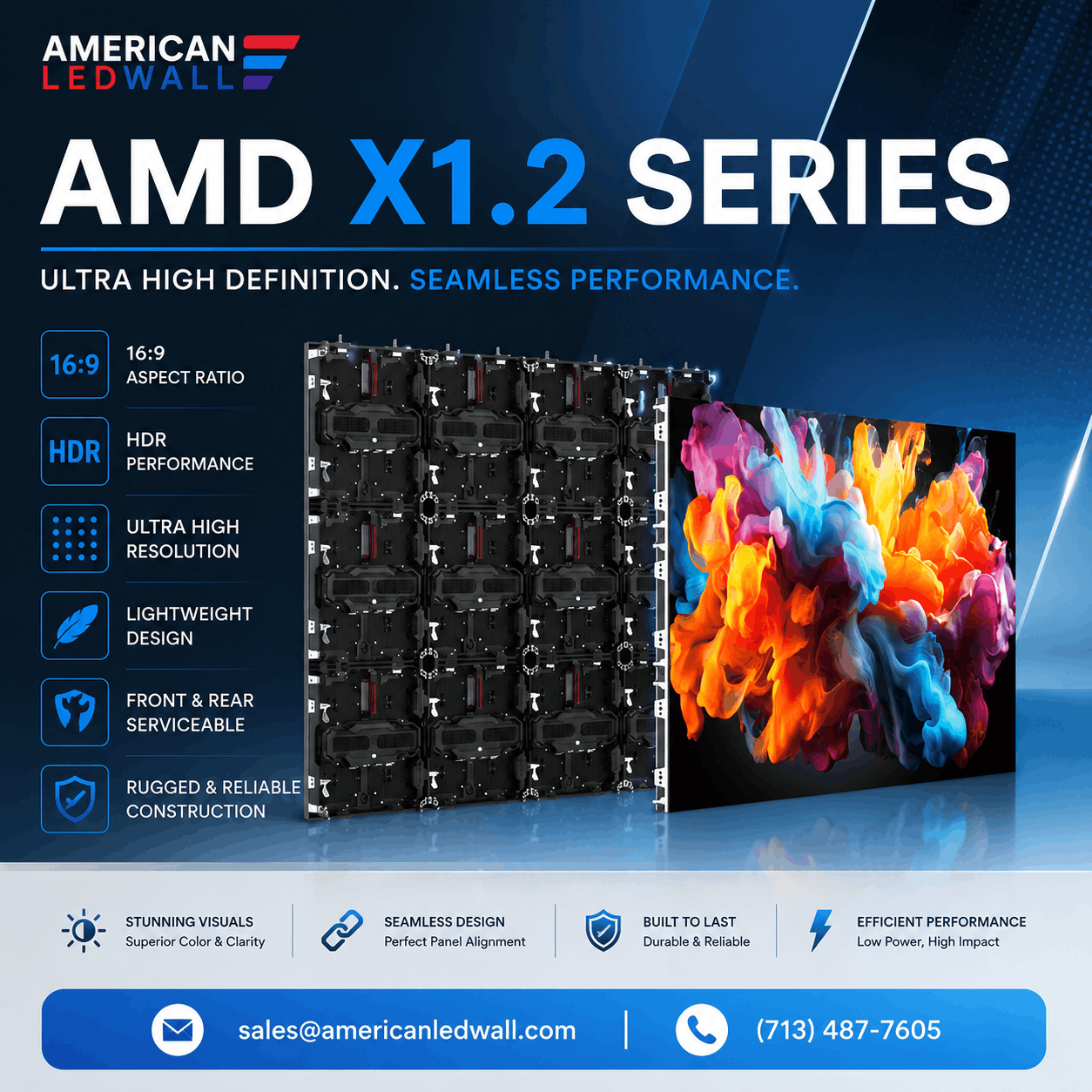

AMD X1.2 Series – Fine Pitch Outdoor Led Video Wall Display

AMD X1.2 Series – Premium Outdoor LED Video Wall Display

If you need an outdoor LED video wall that actually holds up in bright sunlight, in the rain, and for long operating hours, the AMD X1.2 Series is worth a close look. Built by American LED Wall, a trusted outdoor LED screen manufacturer and supplier, this display was designed with real installation challenges in mind, not just spec sheet numbers.

This screen has a 1.25mm pixel pitch, which gives fine detail in images and video. You can also get 4000 nits of brightness in this display, which is able to provide you with a clear image even on the sunniest days. You can display live event footage, advertising content, or real-time data on this screen because it delivers a sharp, smooth, well-defined image. The 3840Hz refresh rate and 14–16-bit grayscale ensure that colors remain accurate and video stays flicker-free across all content types.

Uses of AMD X1.2 Series Outdoor LED Screen

The AMD X1.2 Series is a versatile outdoor LED video wall that works across a wide range of professional environments:

• Sports Venues – Scoreboards, live match feeds, and player stats that stay visible from every seat in open-air stadiums and arenas
• Retail Storefronts – Eye-catching promotional displays and branded content that grab attention from the street, even in direct sunlight
• Transit Hubs – Passenger information boards and advertising panels at airports, train stations, and bus terminals that run continuously through all weather conditions
• Corporate Building Facades – You can use it in exterior branding, event announcements, and visual communication that stays sharp day and night
• Outdoor Festivals & Concerts – You can use it in main stage backdrops, and audience displays where high brightness and smooth video playback are non-negotiable
• Hotels & Resorts – Poolside and open-air displays for event promotions, guest information, and ambient visual experiences
• Houses of Worship – You can use it in outdoor campus displays for service schedules, live streaming, and announcements visible from parking areas and public streets

Key Benefits of AMD X1.2 Series LED Display

When you invest in an outdoor LED screen, durability and long-term reliability matter just as much as picture quality, the AMD X1.2 Series is IP65 rated, meaning it’s fully protected against dust and water without any additional housing.

The weight of this screen is 9 kg, making cabinet installation easier and reducing the structural load on supporting frameworks. You will get a 100,000-hour LED lifespan, which means a longer lifespan for this display. You can also use this screen in different temperatures from -20°C to +50°C, ensuring the display runs reliably through every season. Its power consumption is also very low, just 220W/m², which means you can keep day-to-day operating costs reasonable, even across large-format installations.

Product Specification

PHYSICAL PARAMETERS

• Product – AMD X1.2 Series
• Pixel Pitch (mm) – P1.25
• Cabinet Resolution (W×H) – 384×432
• Cabinet Size (mm)(W×H×D) – 480 × 540 ×85
• Overall Weight (kg) – 9

OPTICAL PARAMETERS

• Pixel Density (dots/m2) – 640,000
• Frame Rate (Hz) – 50/60
• Refresh Rate (Hz) – ≥3840
• Brightness (nits) – 4000
• Gray Scale (bit) – 14~16
• Color Temp (K) – 2000~12,000K

ELECTRICAL PARAMETERS

• Max. Power Consumption (W/m2) – ≤720
• Avg. Power Consumption (W/m2) – ≤220
• Working Voltage (V) AC –  110V~240V, 50~60Hz

ADDITIONAL FEATURES

• Lifetime (Hrs) – 100,000
• Operation Humidity (RH) – 10%~90%
• Operation Temp (RH) – -20~+50
• IP Level – IP65
