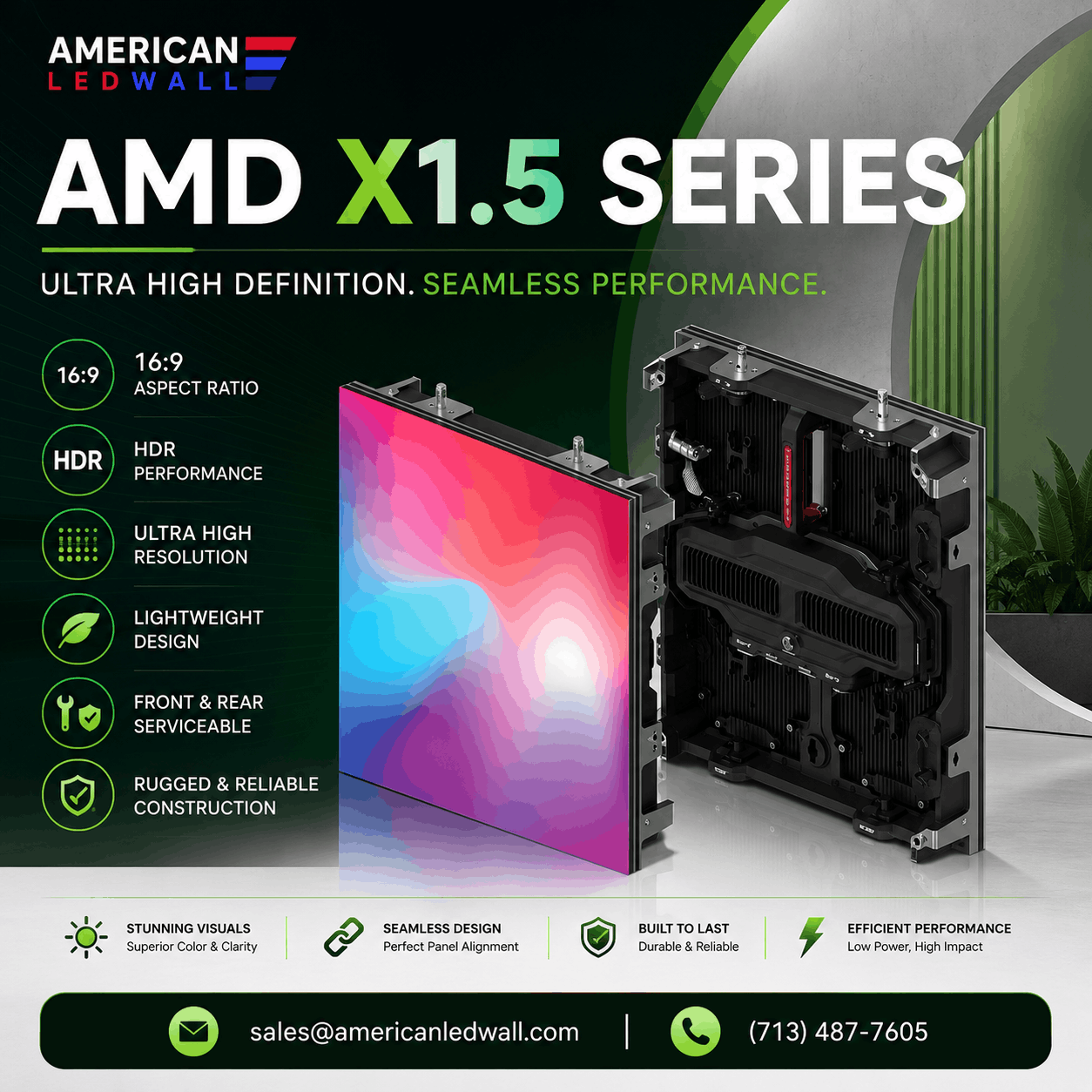

AMD X1.5 Series – Premium Outdoor LED Video Wall Display

The AMD X1.5 Series is a professional-grade outdoor LED video wall display designed for installations where visibility, durability, and consistent performance are the top priorities. As an experienced outdoor LED screen manufacturer and supplier, American LED Wall designed this display to handle the demands of real outdoor environments, direct sunlight, varying temperatures, humidity, and continuous operation.

AMD X1.5 Series offers 1.5mm pixel pitch and 4000 nits of brightness, which delivers clear, detailed visuals that stay sharp and readable throughout the day in any light condition. You can also get a 3840Hz refresh rate, which ensures smooth video playback for any video format. You can also get 14–16 bit grayscale, which helps maintain accurate, natural color reproduction across all content types, from live broadcasts to advertising and data displays.

Uses of AMD X1.5 Series Outdoor LED Screen

The AMD X1.5 Series works reliably across a broad range of outdoor professional settings:

• Sports Venues – Live match feeds, scoreboards, and real-time stats visible from every corner of the stadium
• Retail Storefronts – Bold promotional and branded content that stands out on busy streets in any lighting condition
• Transit Hubs – Continuous passenger information and advertising displays at airports, stations, and terminals
• Corporate Building Facades – Exterior branding and announcements that communicate clearly day and night
• Outdoor Festivals & Concerts – You can use it in festivals and concerts as stage backdrops and audience displays that demand high brightness and smooth video
• Hotels & Resorts – Open-air and poolside displays for guest information and event promotion
• Houses of Worship – You can use it in a church as outdoor displays for schedules, announcements, and live streaming visible from a distance

Key Benefits of AMD X1.5 Series LED Display

The AMD X1.5 Series LED display has an IP65 rating, meaning it is fully protected against dust and water. You do not need an additional protective enclosure. This is a very lightweight screen cabinet, weighing 9kg, which makes it easy to install. It also reduces structural requirements on supporting frameworks.

This screen can operate over a wide temperature range, from -20°C to +50°C. You will get consistent performance through summer heat and winter cold alike. Maintaining this display is also very low-cost, thanks to its 100,000-hour LED lifespan. The power cost is also very low; the display’s average power consumption is 220 W/m², which keeps your running costs low. AMD X1.5 Series display is a practical and reliable long-term investment for any outdoor LED video wall project.

Product Specification

PHYSICAL PARAMETERS

• Product – AMD X1.5 Series
• Pixel Pitch (mm) – P1.5
• Cabinet Resolution (W×H) – 320×360
• Cabinet Size (mm)(W×H×D) – 480×540×85
• Overall Weight (kg) – 9

OPTICAL PARAMETERS

• Pixel Density (dots/m2) – 444,444
• Frame Rate (Hz) – 50/60
• Refresh Rate (Hz) – ≥3840
• Brightness (nits) – 4000
• Gray Scale (bit) – 14~16
• Color Temp (K) – 2000~12,000K

ELECTRICAL PARAMETERS

• Max. Power Consumption (W/m2) – ≤720
• Avg. Power Consumption (W/m2) – ≤220
• Working Voltage (V) AC – 110V~240V, 50~60Hz

ADDITIONAL FEATURES

• Lifetime (Hrs) – 100,000
• Operation Humidity (RH) – 10%~90%
• Operation Temp (RH) – -20~+50
• IP Level – IP65
