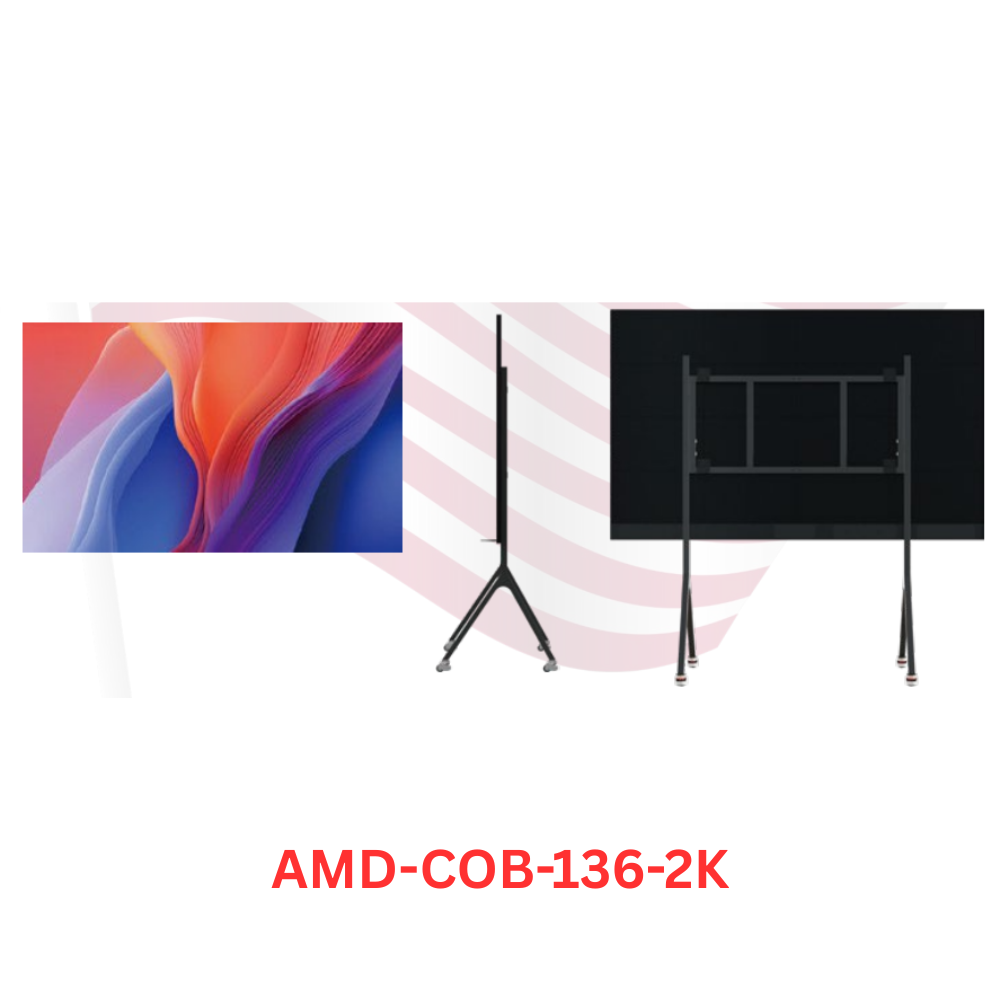

AMD-COB-136-2K – Indoor LED Video Wall Display

AMD-COB-136-2K P1.56 Fine Pitch Indoor LED Video Wall Display Solution

Meet the AMD-COB-136-2K – the clear choice for anyone who needs a brilliant and rock-solid LED display. If you are setting up a corporate boardroom, a broadcast studio, or a critical control room, this P1.56 fine pitch display brings your content to life with true Full HD 1080p resolution.

We built it with advanced Chip-on-Board (COB) technology, which means the LEDs are embedded directly into the board. This is not just technical jargon; it translates to an incredibly tough screen. It shrugs off bumps, resists dust, and remains unaffected by moisture, which dramatically reduces maintenance and provides years of reliable service.

You will enjoy buttery-smooth video playback thanks to its ultra-high refresh rate, along with rich, accurate colors that can be tuned to match your lighting. Additionally, with a rated lifespan of 100,000 hours, the AMD-COB-136-2K is a long-term investment designed to perform consistently, making it an innovative and hassle-free solution for your most critical visual projects.

Product Specifications

Here are the detailed technical specifications for the AMD-COB-136-2K display:

Physical Parameters

• Pixel Pitch: P1.56
• Pixel Configuration: Chip-on-Board (COB)
• Display Size (W×H): 3000 mm × 1687.5 mm
• Overall Weight: 120 kg

Optical Parameters

• Resolution (W×H): 1920 × 1080 (Full HD)
• Frame Rate: 50/60 Hz
• Refresh Rate: 3840 ~ 7680 Hz
• Brightness: 1000 nits
• Gray Scale: 14~16 bit
• Color Temperature: 2000~12000 K (Adjustable)

Electrical Parameters

• Max. Power Consumption: ≤ 2530 W
• Avg. Power Consumption: ≤ 1020 W
• Working Voltage: AC 110V~240V, 50~60Hz

Additional Features

• Lifetime: 100,000 Hours
• Operation Humidity: 10% ~ 80% RH
