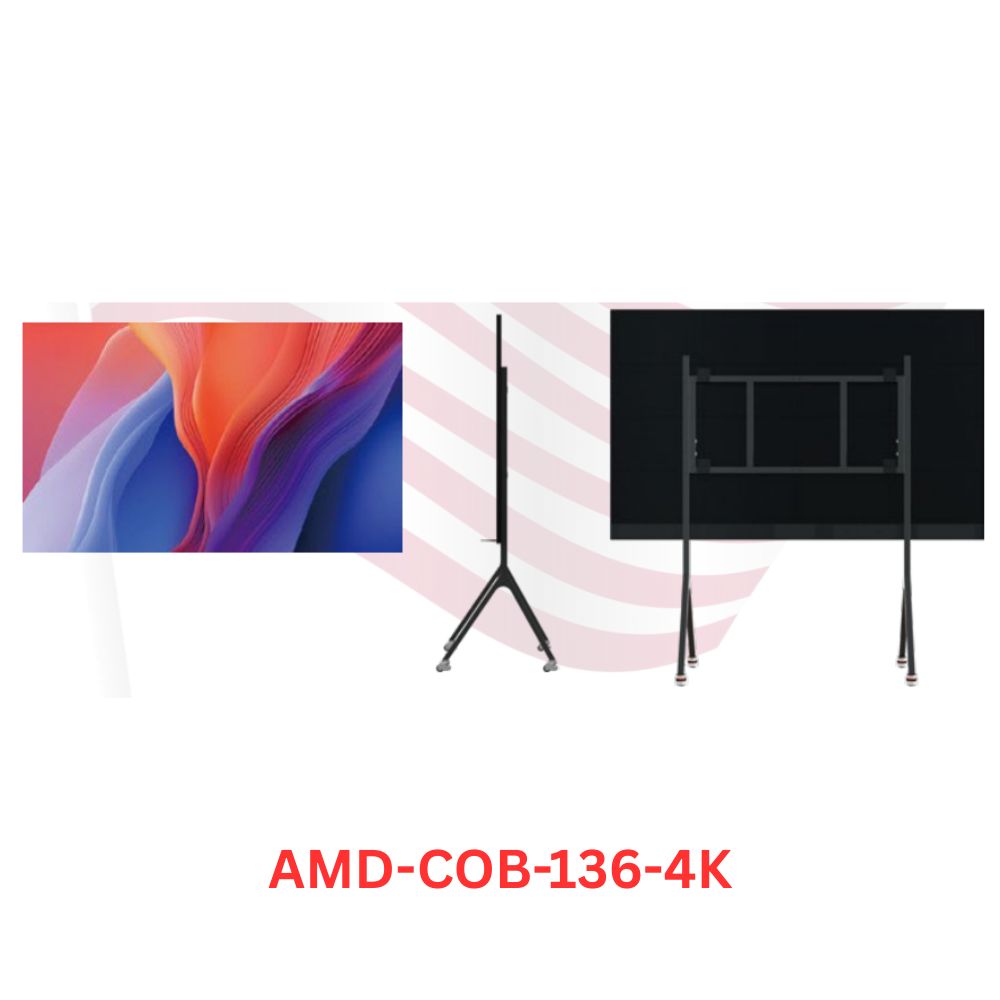

AMD-COB-136-4K – Indoor LED Video Wall Display

AMD-COB-136-4K Indoor LED Video Wall Display Solution

Tired of displays that can not handle the pressure? Meet the AMD-COB-136-4K, the LED panel that’s as tough as it is stunning. We have built this display from the ground up with Chip-on-Board (COB) technology, which means the LEDs are embedded directly into the board. The result? A rock-solid screen that’s practically immune to bumps, moisture, and dead pixels.

Imagine showcasing your most important content – whether it’s a high-stakes broadcast, a critical control room dashboard, or a breathtaking retail installation – with absolute confidence. You get a brilliantly sharp 4K image that stays flawless day in and day out. We designed the AMD-COB-136-4K not only to meet the demands of professional environments but also to exceed them, providing you with peace of mind and a breathtaking visual experience.

Product Specification

Here are the detailed technical specifications for the AMD-COB-136-4K LED display panel.

PHYSICAL PARAMETERS

• Pixel Pitch: P0.78 mm
• Pixel Configuration: COB (Chip-on-Board)
• Display Size (W×H): 3000 × 1687.5 mm
• Overall Weight: 120 kg

OPTICAL PARAMETERS

• Resolution (W×H): 3840 × 2160 (True 4K UHD)
• Frame Rate: 50/60 Hz
• Refresh Rate: 3840 ~ 7680 Hz
• Brightness: 1000 nits
• Gray Scale: 14 ~ 16 bit
• Color Temperature: 2000 ~ 12000 K

ELECTRICAL PARAMETERS

• Max. Power Consumption: ≤ 3030 W
• Avg. Power Consumption: ≤ 1210 W
• Working Voltage: AC: 110V ~ 240V, 50 ~ 60Hz

ADDITIONAL FEATURES

• Lifetime: 100,000 Hours
• Operation Humidity: 10% ~ 80% RH
