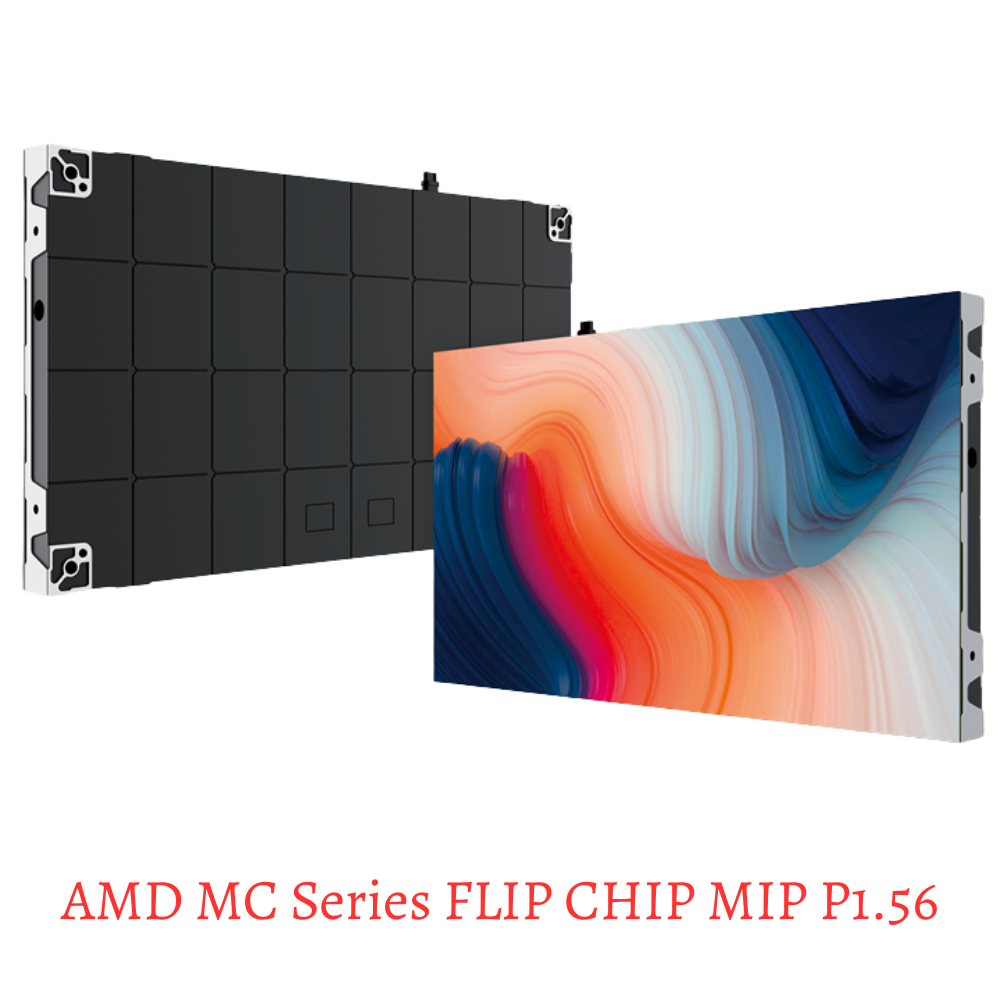

AMD MC Series FLIP CHIP MIP P1.56 (High Contrast) - Indoor LED Video Wall
Description
Experience stunning clarity with the AMD MC Series FLIP CHIP MIP P1.56. This ultra-thin, fine-pitch LED display delivers vibrant visuals, energy efficiency, and easy front maintenance, making it perfect for control rooms and high-end broadcasting.
AMD MC Series FLIP CHIP MIP P1.56 – Ultra HD Indoor LED Video Wall Display Solution
The AMD MC Series FLIP CHIP MIP P1.56 is an ultra-high definition fine pitch LED display, which is mostly used in mission-critical environments where every detail matters. In this LED screen, advanced flip-chip MIP technology is used, which is helpful in delivering superior brightness, contrast, and energy efficiency as compared to traditional SMD displays. This LED display is designed for 24/7 operation, which is why it is used in security monitoring, command dispatch centers, video conferencing, and high-end broadcasting studios.
The purpose of this display is to provide a seamless, high-impact viewing experience with exceptional color accuracy and reliability. Its ultra-thin cabinet design supports flexible installation options, including front maintenance for easy access in tight spaces. By integrating full flip-chip common cathode technology, the AMD MC Series FLIP CHIP MIP P1.56 significantly reduces power consumption – offering up to 30% savings – while maintaining a high grayscale even at low brightness levels. This ensures that every detail is visible with vibrant color reproduction, making it a future-proof investment for professional visual solutions.
Product Specification
- Pixel Pitch (mm) – P1.56
- Cabinet Resolution (mm)(W×H) – 384×216
- Pixel Density (dots/m²) – 409,600
- Cabinet Size (mm)(W×H) – 600×337.5
- Brightness (nits) – ≤1000
- Gray Scale (bit) – 14~16
- Pixel Calibration – Support brightness and color calibration
- Color Temp (K) – 2000~12000 (Adjustable)
- Control System – Synchronous control
- Drive Mode – Constant current drive (Compatible)
- Frame Rate (Hz) – 50/60
- Refresh Rate (Hz) – ≥3840
- Working Voltage (V) – AC: 100V~240V, 50~60Hz
- Contrast Ratio – ≤1,000,000:1
- Max. Power Consumption (W/m²) – ≤700
- Avg. Power Consumption (W/m²) – ≤280
- Lifetime (H) – 100,000
- Operation Temp (°C) – -10~+40
- Storage Temp (°C) – -20~+60
- Operation Humidity (RH) – 10%~80%, no condensation
- Cabinet Weight (kg) – 5.1/7.7
